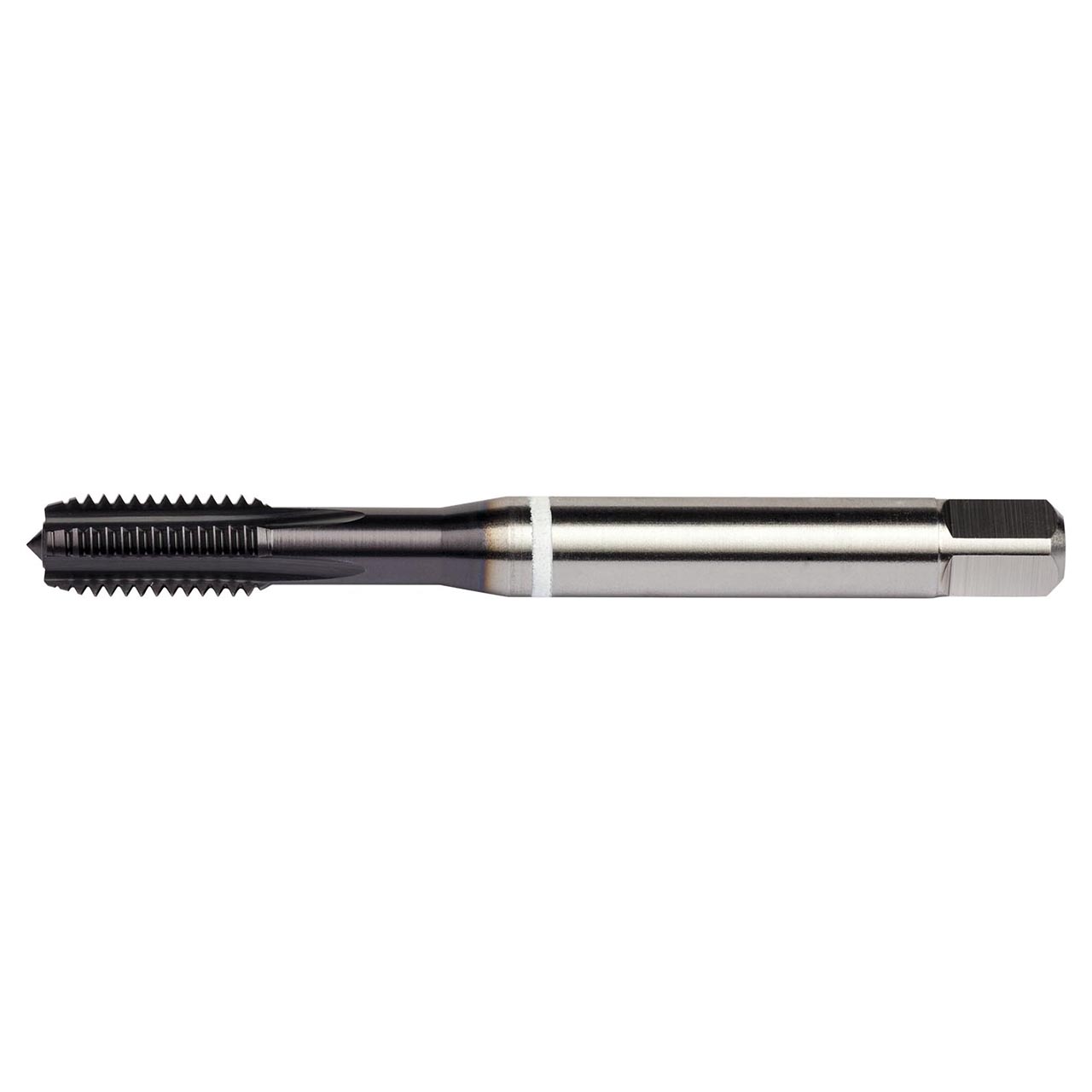

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.59" |
| No of Flutes | 4 |
| Thread Diameter Size | 3/4 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2BX |
| Threading Length (Inch) | 1.181" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNC-Unified Coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
3/4"
Thread Limit:
2BX
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN/Top
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN/ANSI
interval quantity:
1
