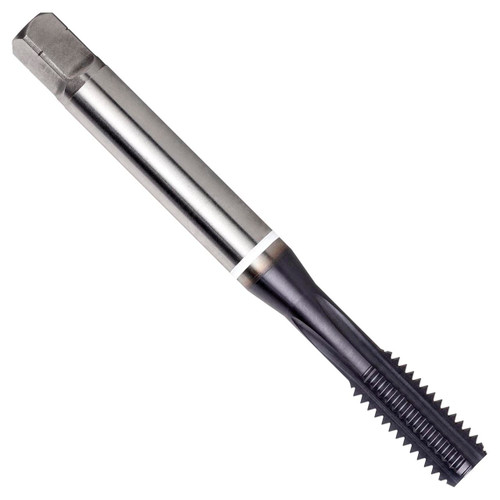

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.59" |
| No of Flutes | 4 |
| Thread Diameter Size | 3/4 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2BX |
| Threading Length (Inch) | 1.181" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | E 1.5-2 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNC-Unified Coarse |
