Features

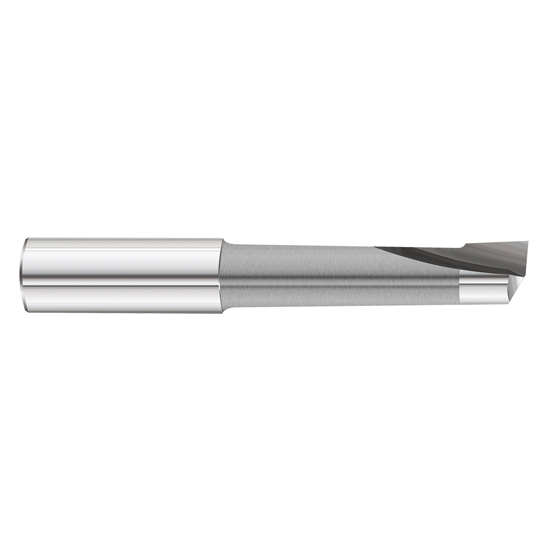

- The 2400 Boring Tool has a single, straight flute with tapered clearance neck improving rigidity with less deflection
- The 2400 Boring Tool is stocked uncoated
Product Specifications
Cutting Diameter (Decimal Inch) | 0.3300" |
Cutting Diameter (mm) | 8.38mm |
Shank Diameter (Decimal Inch) | 0.3750" |
Shank Diameter (mm) | 9.53mm |
Shank Diameter (Inch) | 3/8" |
Overall Length (Decimal Inch) | 2.5000" |
Overall Length (mm) | 63.50mm |
Overall Length (Inch) | 2-1/2" |
Coating/Finish | Uncoated |
Metric/Inch | Inch |
Minimum Hole Diameter (Decimal Inch) | 0.3300" |
Maximum Depth of Hole (Decimal Inch) | 1.5000" |
Maximum Depth of Hole (mm) | 38.10mm |
Maximum Depth of Hole (Inch) | 1-1/2" |
Tool Number | F-8 |
Number of Flutes | 1 |
Flute Spiral Direction | Straight |
Direction of Cut | Right Hand |
End Type | Single End |
Coolant Through | Non Coolant Through |
Weldon Flat | No |
Minimum Hole Diameter (mm) | 8.382mm |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/stencil/88df2040-d9f0-0136-9790-2bda68bb9491/e/2b057ed0-fa56-0136-27b1-73632bbf69c4/img/warning-icon_new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Minimum Bore Diameter (Decimal Inch):
0.3300"
Minimum Bore Diameter (mm):
8.382mm
Maximum Bore Depth (Inch):
1-1/2"
Maximum Bore Depth (Decimal Inch):
1.5000"
Maximum Bore Depth (mm):
38.10mm
Model:
F-8
Ships:
From Partner Facility
