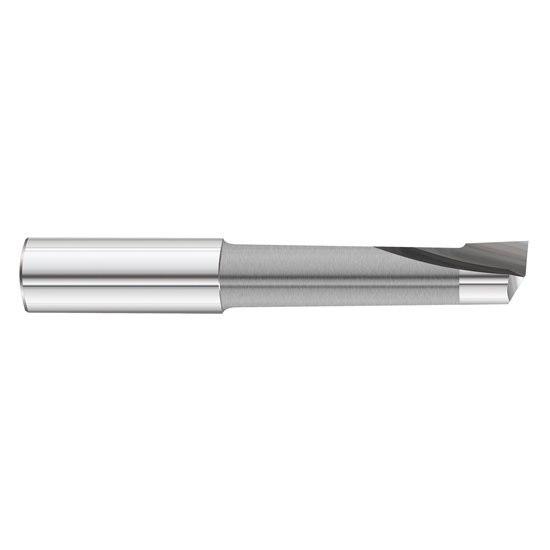

Fullerton Tool 24003 | 0.180" Boring Tool

About This Item

Features

• The 2400 Boring Tool has a single, straight flute with tapered clearance neck improving rigidity with less deflection
• The 2400 Boring Tool is stocked uncoated

Product Specifications

Cutting Diameter (Decimal Inch)	0.1800"
Cutting Diameter (mm)	4.57mm
Shank Diameter (Decimal Inch)	0.1875"
Shank Diameter (mm)	4.76mm
Shank Diameter (Inch)	3/16"
Overall Length (Decimal Inch)	2.0000"
Overall Length (mm)	50.80mm
Overall Length (Inch)	2"
Coating/Finish	Uncoated
Metric/Inch	Inch
Minimum Hole Diameter (Decimal Inch)	0.1800"
Maximum Depth of Hole (Decimal Inch)	1"
Maximum Depth of Hole (mm)	25.40mm
Maximum Depth of Hole (Inch)	1"
Tool Number	F-3
Number of Flutes	1
Flute Spiral Direction	Straight
Direction of Cut	Right Hand
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Minimum Hole Diameter (mm)	4.572mm
