Features

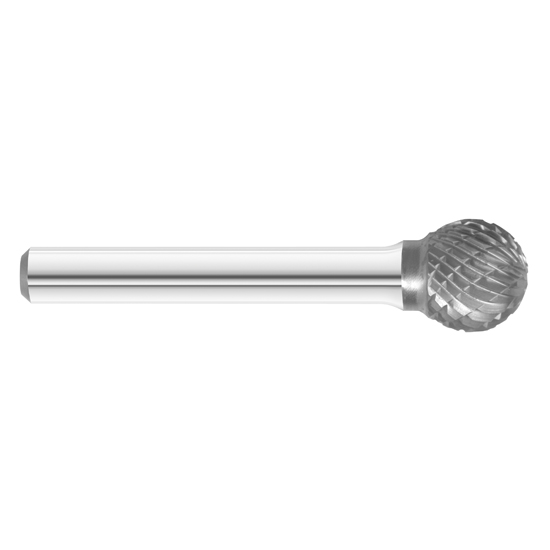

- Burrs, also known as rotary files, are designed to clean (deburr) castings
- They are available in a wide range of shapes, sizes, and unique flute geometries
- Industry standard forms SA, SB, SC, SD, SE, SF, SG, SM, SL, SH, SK, SJ, SN, and SNE are available as well as Single Cut, Double Cut, Chip Breaker, Diamond, and Fast Mill Cut end cuts
- Burrs are stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.5000" |
| Cutting Diameter (mm) | 12.70mm |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Flute Length (Decimal Inch) | 0.5000" |
| Cutting Flute Length (mm) | 12.70mm |
| Cutting Flute Length (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (mm) | 57.15mm |
| Overall Length (Inch) | 2-1/4" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Tool Number | SD-5 |
| Head Shape | Ball Flameape |
| Cut Number | 5 |
| Cut Name | Fast Mill |
| Number of Flutes | 8 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Head Shape:
Ball Flameape
Industry Specification:
SD-5
Tooth Style:
Fast Mill
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Head Material:
Solid Carbide
Ships:
From Partner Facility
IsDiscontinued:
