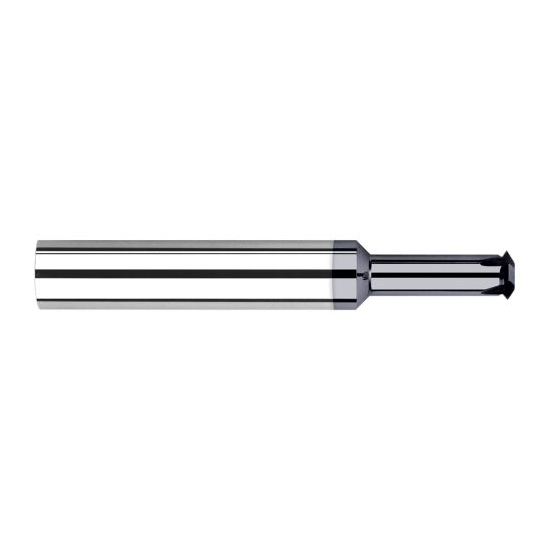

Features
- Single thread form - can mill multiple pitches
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Milling Diameter (mm) | 1.900mm |
| Max Depth of Thread (mm) | 5.800mm |
| Number of Flutes | 2 |
| Finish/Coating | AlTiN |
| Included Angle | 60 Degree |
| Shank Diameter (mm) | 3.000mm |
| Overall Length (mm) | 38.000mm |
| Neck Diameter (mm) | 1.140mm |
| Length of Cut (mm) | 0.439mm |
| Angle Per Side | 30 Degrees |
| Reach Multiple | (5x) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (mm):
1.900mm
Number of Flutes:
2
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (mm):
3.000mm
Overall Length (mm):
38.000mm
Ships:
From Partner Facility
