Product Specifications
| Manufacturer Part Number | 34317W |
| Cutter Diameter (Decimal Inch) | 0.625" |
| Cutter Diameter (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.750" |
| Length of Cut (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flutes | 5 |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (Inch) | 5/8" |
| Coating | APLUS |
| Center Cutting | Yes |
| Weldon Flat | Yes |

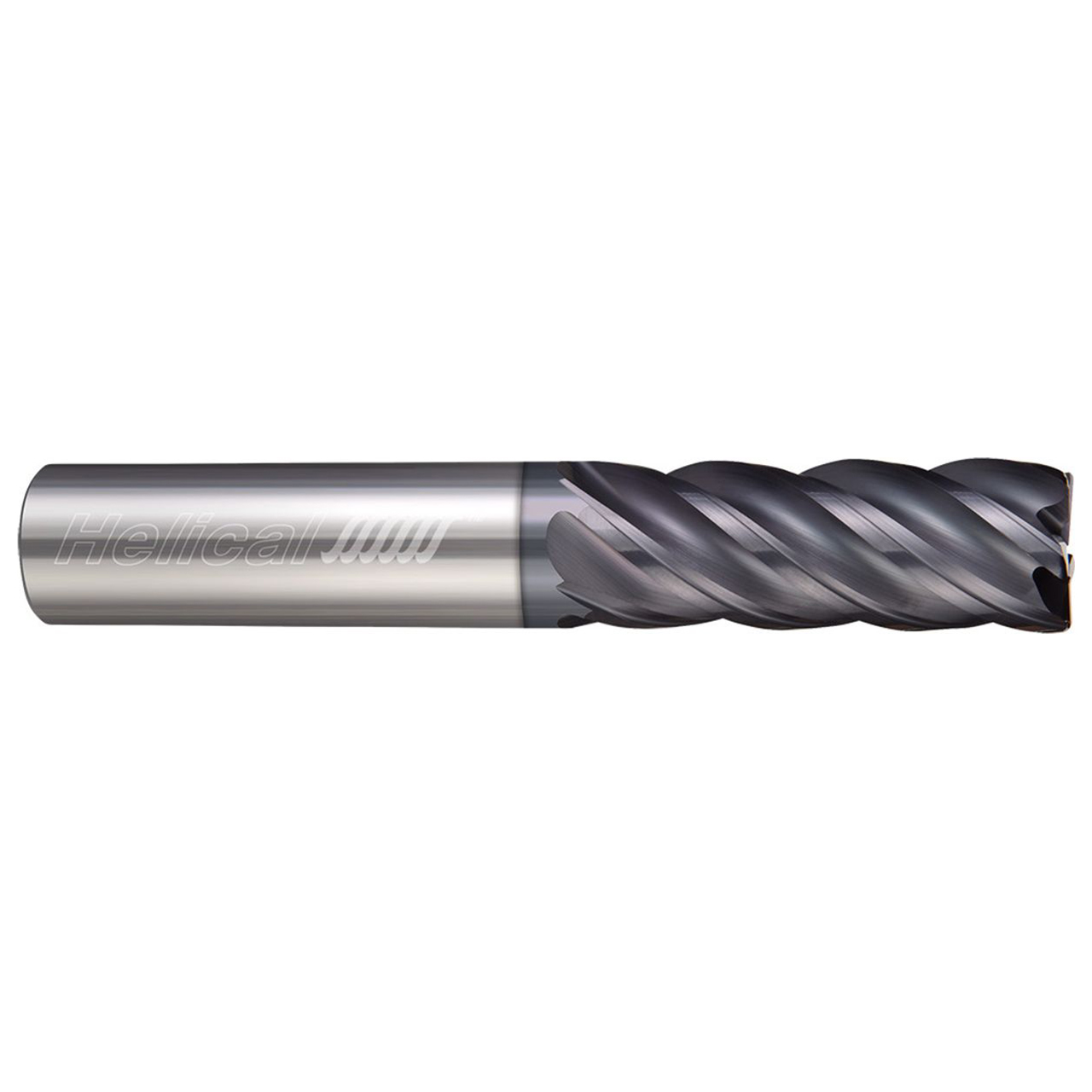

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Cutter Diameter (mm):
15.88mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Corner Radius (Inch):
2/67"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
5
Finish/Coating:
APLUS Coated
