Product Specifications
| Manufacturer Part Number | 43737W |
| Cutter Diameter (Decimal Inch) | 1.000" |
| Cutter Diameter (Inch) | 1" |
| Length of Cut (Decimal Inch) | 2.625" |
| Length of Cut (Inch) | 2-5/8" |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (Inch) | 5" |
| Corner Radius (Decimal Inch) | 0.060" |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (Inch) | 1" |
| Coating | APLUS |
| Center Cutting | Yes |
| Weldon Flat | Yes |

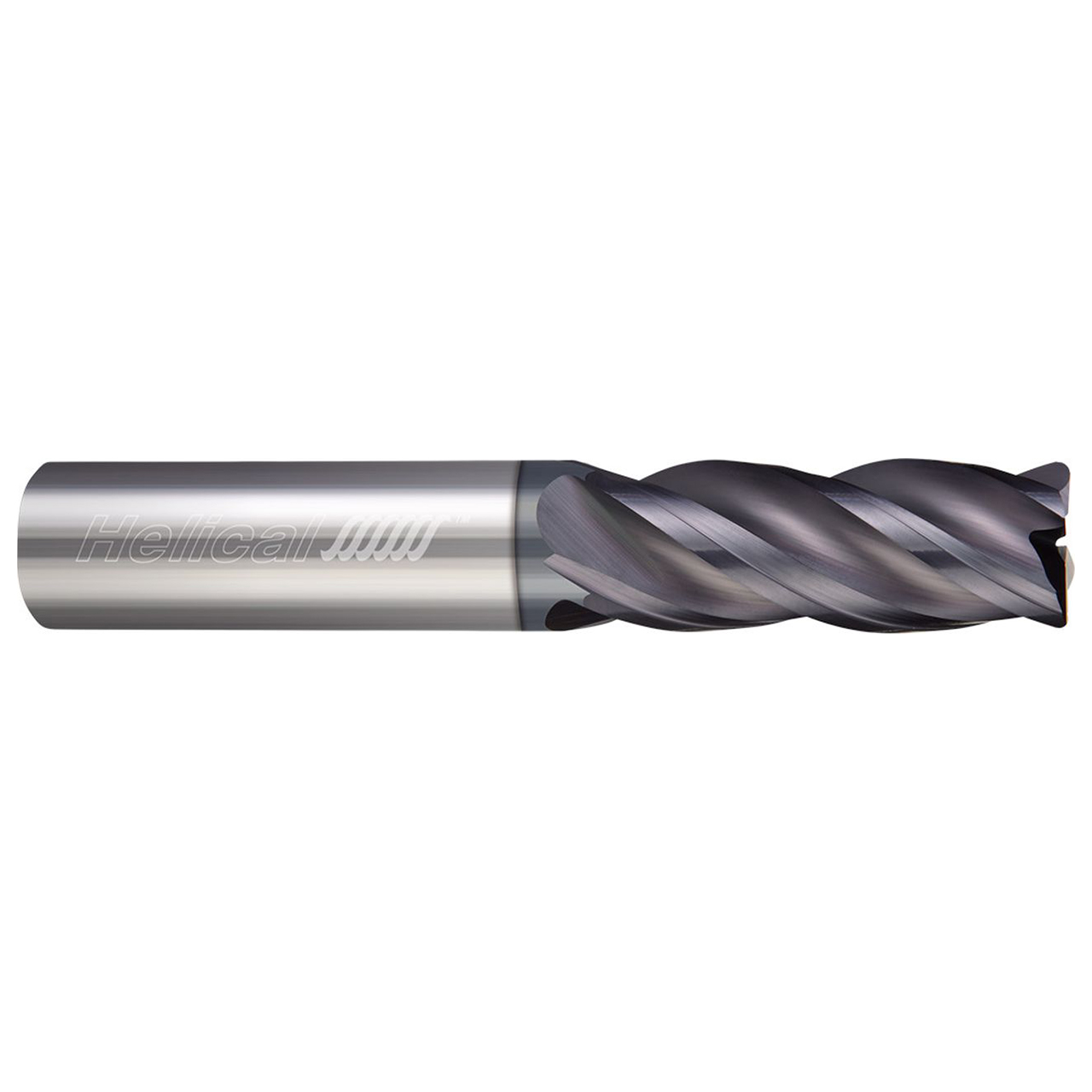

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
1"
Cutter Diameter (Decimal Inch):
1.0000"
Cutter Diameter (mm):
25.40mm
Length of Cut (Inch):
2-5/8"
Length of Cut (Decimal Inch):
2.6250"
Length of Cut (mm):
66.68mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Corner Radius (Inch):
3/50"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Number of Flutes:
4
Finish/Coating:
APLUS Coated
