Product Specifications
| Manufacturer Part Number | 89579 |
| Cutter Diameter (Decimal Inch) | 0.750" |
| Cutter Diameter (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 3.250" |
| Length of Cut (Inch) | 3-1/4" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (Inch) | 6" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Inch) | 3/4" |
| Coating | Uncoated |
| Center Cutting | Yes |

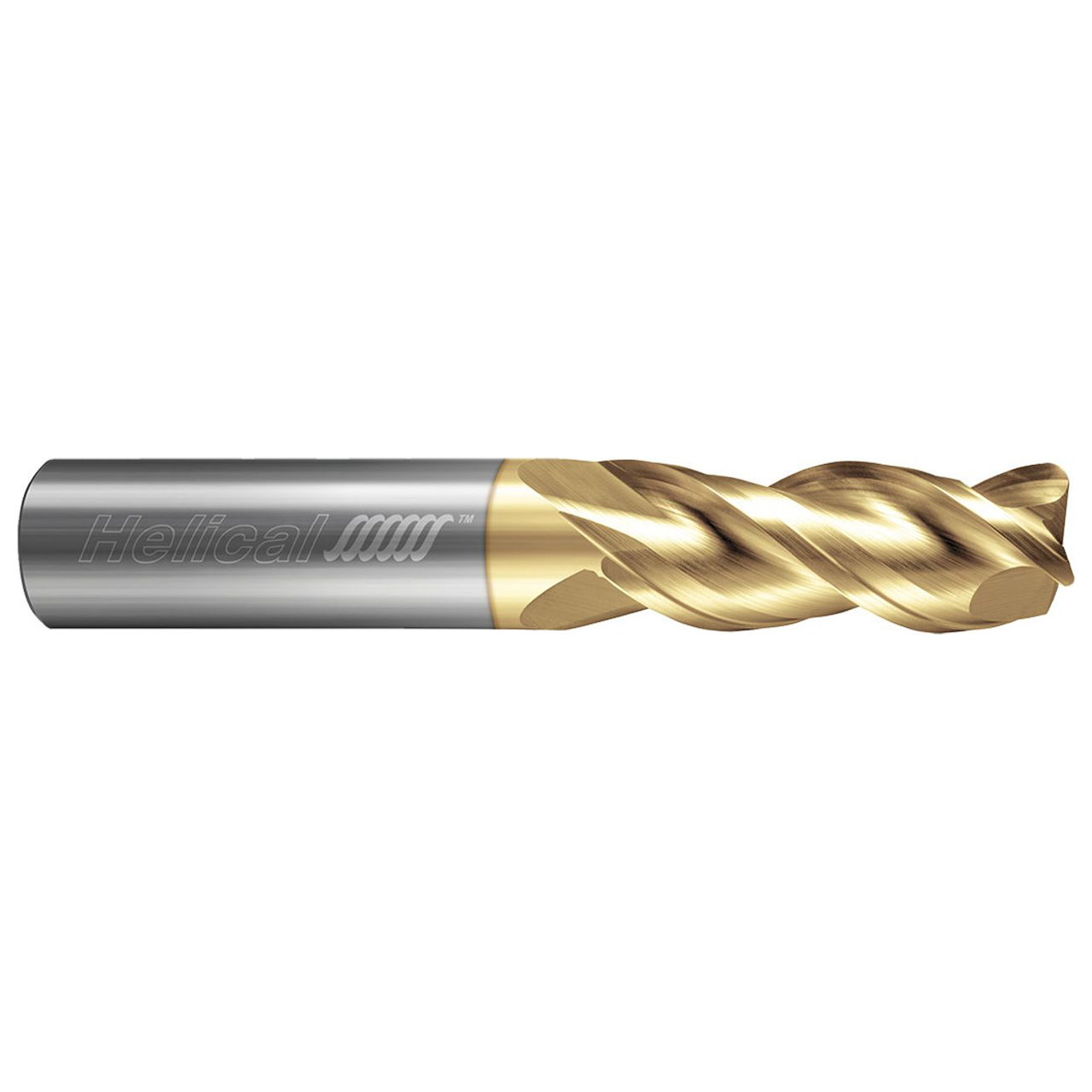

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Cutter Diameter (mm):
19.05mm
Length of Cut (Inch):
3-1/4"
Length of Cut (Decimal Inch):
3.2500"
Length of Cut (mm):
82.55mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Corner Radius (Inch):
2/67"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Number of Flutes:
3
Finish/Coating:
UN Coated
