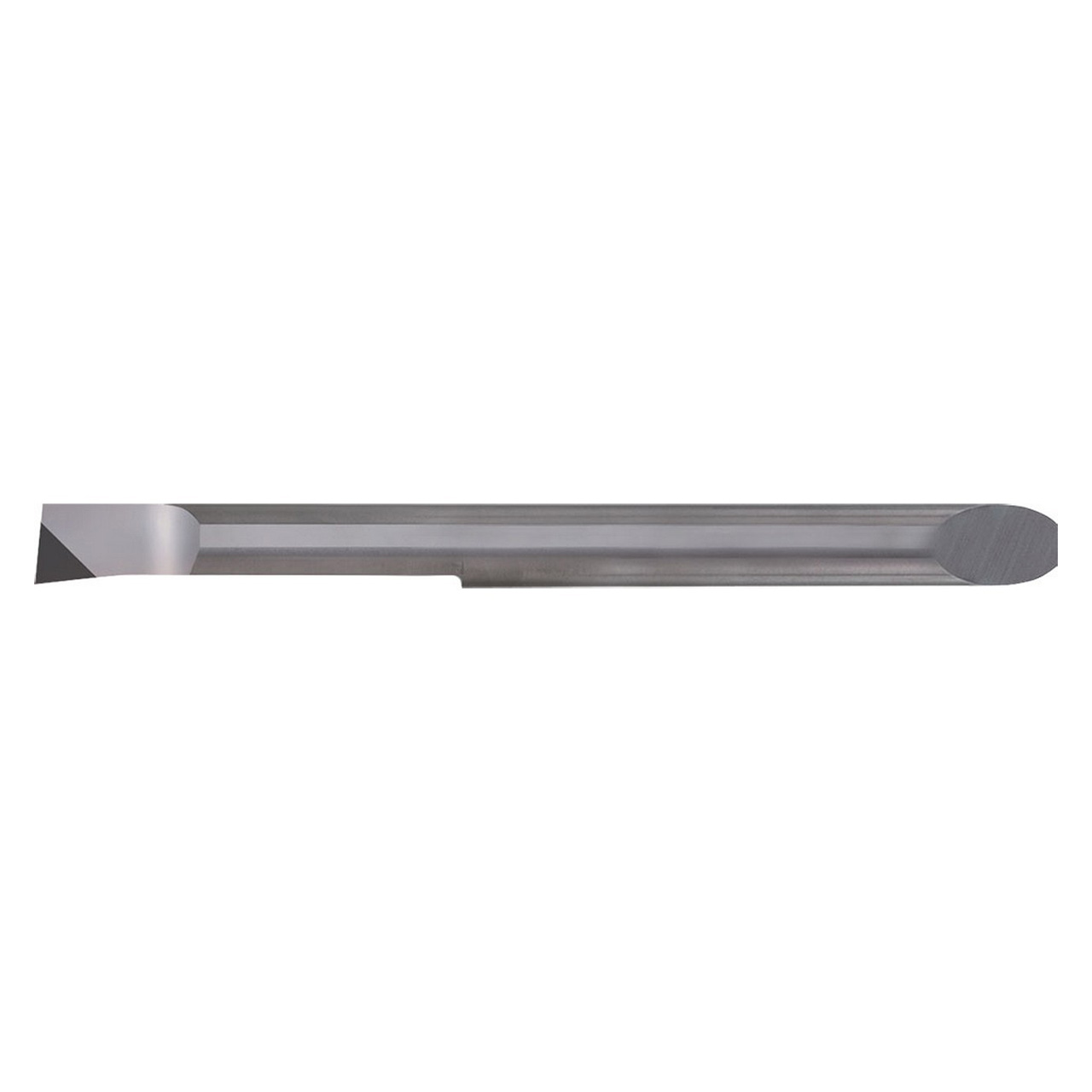

Features:
- Adjustable overhang length (EZ Adjust structure)
- Minimized deviation of the cutting diameter
- Various EZ bar sizes and styles for a wide range of small internal machining applications
- Without chipbreaker for non-ferrous machining applications
- Compatible with EZH060 style sleeves
Product Specifications
| EDP Number | TBN30406 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Connection Diameter (Decimal Inch) | 0.2362" |
| Connection Diameter (mm) | 6.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.2362" |
| Minimum Bore Diameter (mm) | 6.00mm |
| Shank Height (Decimal Inch) | 0.2205" |
| Shank Height (mm) | 5.60mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 1.1811" |
| Usable Length (mm) | 30.00mm |
| Corner Radius (Decimal Inch) | 0.001" |
| Corner Radius (mm) | 0.035mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | KBN05M |
| Insert Holding Method | Screw |
| Material | CBN |
| Primary Workpiece Material | Hardened Materials (H) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.2362"""
Minimum Bore Diameter (mm):
6.00mm
Maximum Bore Depth (Decimal Inch):
1.1811"
Maximum Bore Depth (mm):
30.00mm
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
