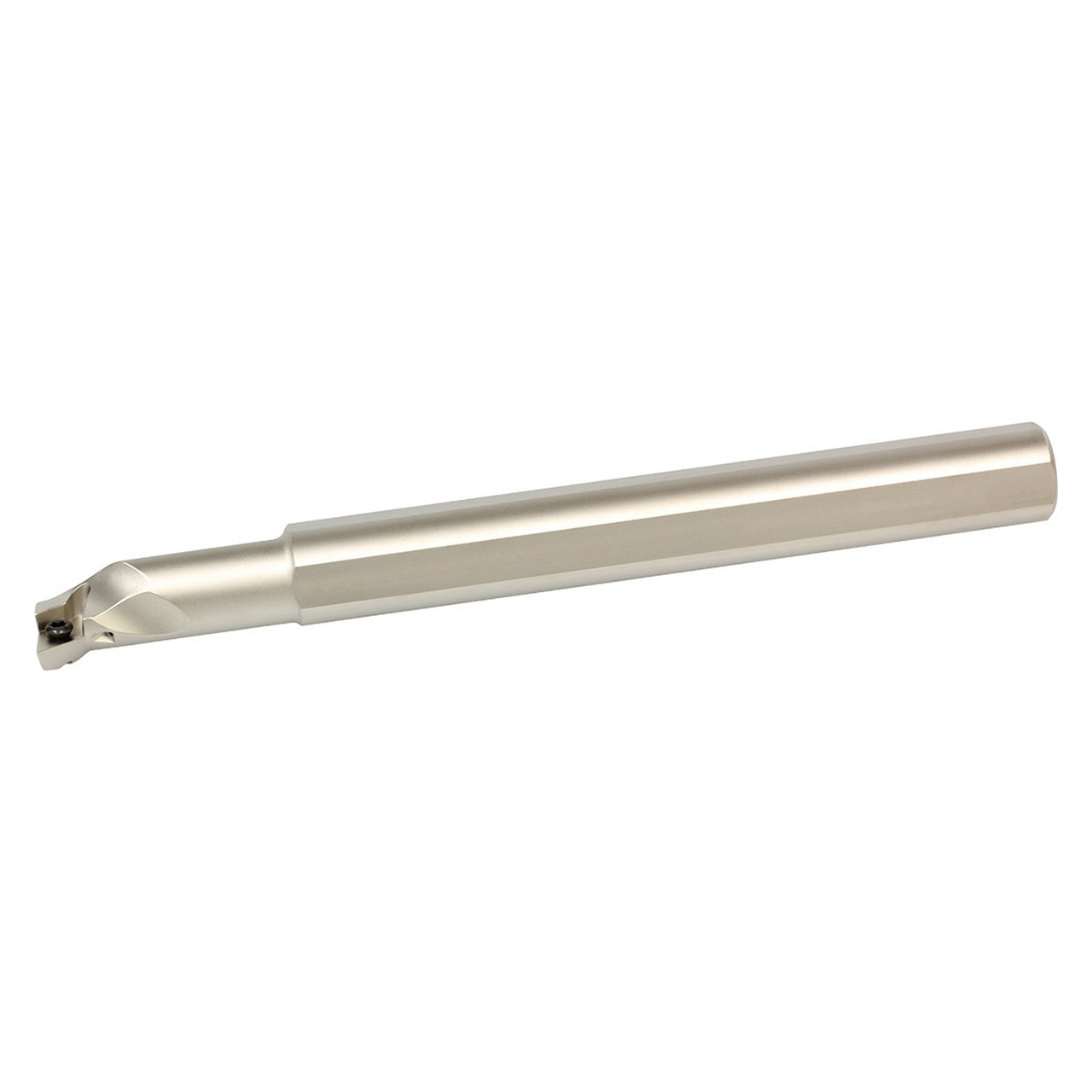

Kyocera Precision Tools THC11704 | A16QSDUCR0714AE 0.6299" Diameter Right-Hand Steel Indexable Boring Bar

$200.74
Brand:
Kyocera Precision Tools
Toolholder Style:
A...SDUC-AE
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=0.5512"""
Minimum Bore Diameter (mm):
14.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Through Coolant:
Yes
SKU:
23229667
Weight:
0.56 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 3 (Axial), -5 (Radial) Rake angle dynamic bar coolant-through boring bar

Product Specifications
EDP NumberTHC11704
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Minimum Bore Diameter (Decimal Inch)0.5512"
Minimum Bore Diameter (mm)14.00mm
Shank Height (Decimal Inch)0.5906"
Shank Height (mm)15.00mm
Tool Entering Angle ( Degree)93 Degree
ApplicationCopying
Bar TypeExcellent Bar
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
Insert Shape55 Degree Diamond
MaterialSteel
RakePositive
