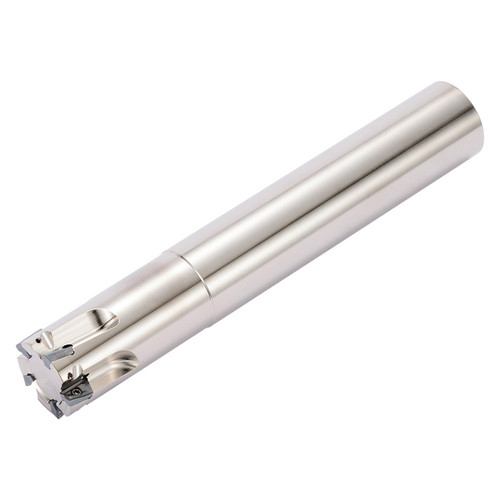

Kyocera Precision Tools THN02009 | MEF18S16 0.3032-0.7087" Diameter x 89 Degree Angle 2 Flute Steel Indexable End Mill

$334.71 $277.81
(You save $56.90)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
19/64 - 45/64"
Cutting Diameter (Decimal Inch):
0.3032 - 0.7087"
Cutting Diameter (mm):
7.70 - 18.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MEF
SKU:
23233015
UPC:
Weight:
0.53 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, standard length, 89 Degree lead angle end mill
  • Bolt countersinking, shouldering, facing applications
  • Compatible with SPMT060204E-Z, SPMT060208E-Z inserts

Product Specifications
EDP NumberTHN02009
Cutting Diameter (Decimal Inch)0.3032 - 0.7087"
Cutting Diameter (mm)7.70 - 18.00mm
Cutting Diameter Minimum (Decimal Inch)0.3032"
Cutting Diameter Minimum (mm)7.70mm
Cutting Diameter Maximum (Decimal Inch)0.7087"
Cutting Diameter Maximum (mm)18.00mm
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Tool Entering Angle ( Degree)5.1161 Degree
ApplicationBolt Countersinking | Facing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
