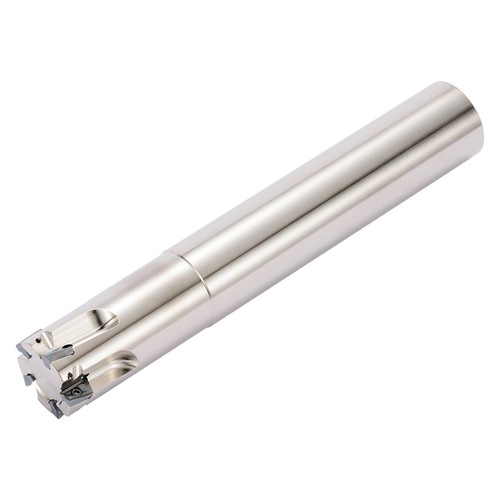

Kyocera Precision Tools THN02042 | MEF35S32 0.7244-1.3780" Diameter x 89 Degree Angle 3 Flute Steel Indexable End Mill

$293.94
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
23/32 - 1-3/8"
Cutting Diameter (Decimal Inch):
0.7244 - 1.3780"
Cutting Diameter (mm):
18.40 - 35.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
SKU:
23233027
Weight:
2.02 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, standard length, 89 Degree lead angle end mill
  • Bolt countersinking (M22), shouldering, facing applications
  • Compatible with SPMT090304E-Z, SPMT090308E-Z inserts

Product Specifications
EDP NumberTHN02042
Cutting Diameter (Decimal Inch)0.7244 - 1.3780"
Cutting Diameter (mm)18.40 - 35.00mm
Cutting Diameter Minimum (Decimal Inch)0.7244"
Cutting Diameter Minimum (mm)18.40mm
Cutting Diameter Maximum (Decimal Inch)1.3780"
Cutting Diameter Maximum (mm)35.00mm
Connection Diameter (Decimal Inch)1.2598"
Connection Diameter (mm)32.00mm
Tool Entering Angle ( Degree)3.9370 Degree
ApplicationBolt Countersinking | Facing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeStandard Length

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
23/32 - 1-3/8"
Cutting Diameter (Decimal Inch):
0.7244 - 1.3780"
Cutting Diameter (mm):
18.40 - 35.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
