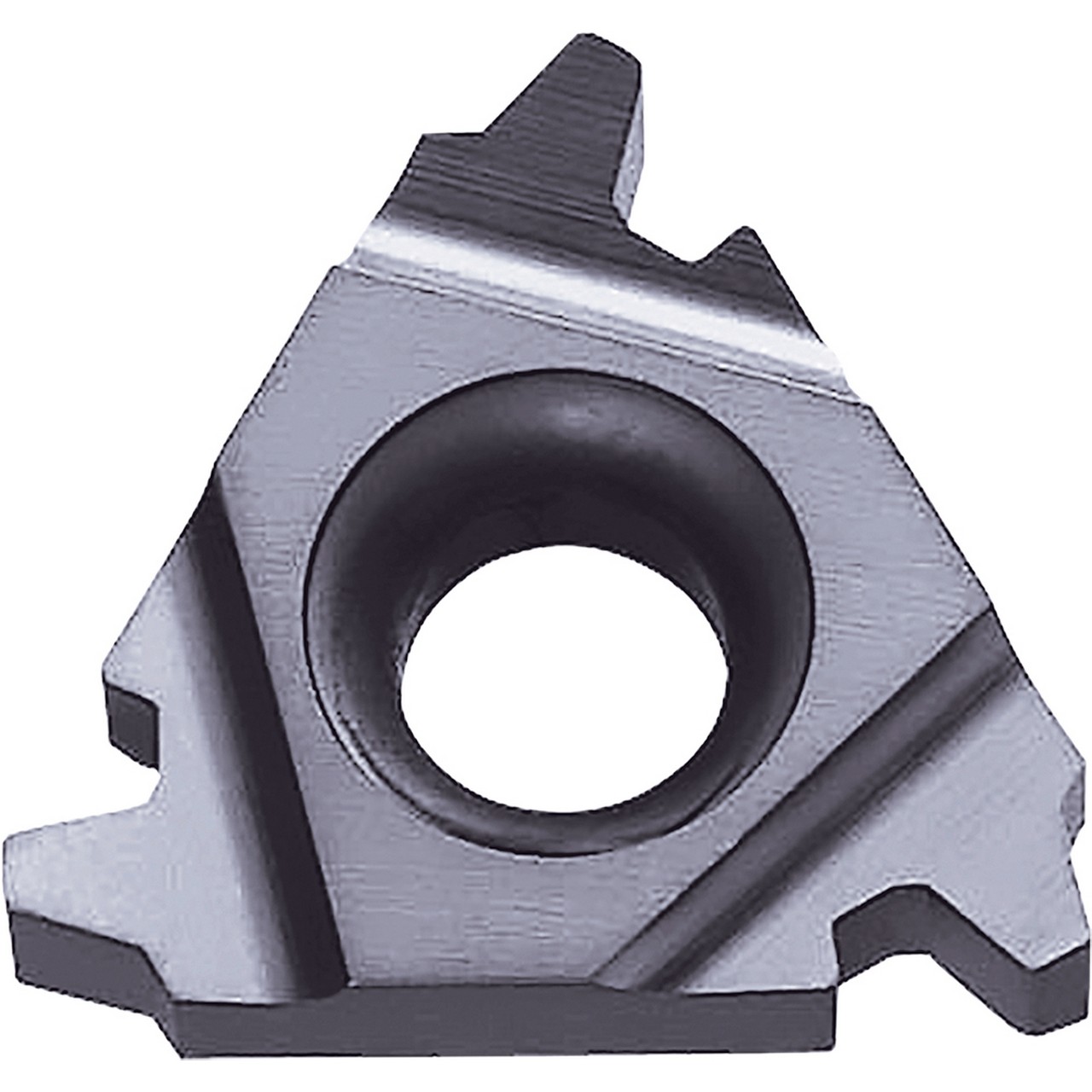

Kyocera Precision Tools TJY18748 | 16ER200TR PR1115 Carbide Circle Diameter x 0.145" Thickness PVD Coated Carbide Laydown Threading Insert

$51.39 $29.81
(You save $21.58)
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=16ER"
Insert Hand:
Right-Hand
Thread Type:
External
Thread Standard:
Trapezoidal (Tr)
Manufacturer's Grade:
PR1115
External Pitch (Inch):
5/64 "
External Pitch (Decimal Inch):
0.0800"
External Pitch (mm):
Tr: 2.0mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1450"
Thickness (mm):
3.68mm
SKU:
23237148
UPC:
Weight:
0.08 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 3 cutting edges
  • 30 Degree partial profile for trapezoidal (Tr) threads
  • Hard TiAlN base PVD coated super micro-grain carbide
  • Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel

Product Specifications
EDP NumberTJY18748
Inscribed Circle (Inch)3/8"
[IC] Inscribed Circle (mm)9.525mm
[RE] Corner Radius (Inch)0.008"
[RE] Corner Radius (mm)0.20mm
[S] Thickness (Inch)0.145"
[S] Thickness (mm)3.68mm
ApplicationExternal Threading
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=16ER"
Insert Hand:
Right-Hand
Thread Type:
External
Thread Standard:
Trapezoidal (Tr)
Manufacturer's Grade:
PR1115
External Pitch (Inch):
5/64 "
External Pitch (Decimal Inch):
0.0800"
External Pitch (mm):
Tr: 2.0mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1450"
Thickness (mm):
3.68mm
