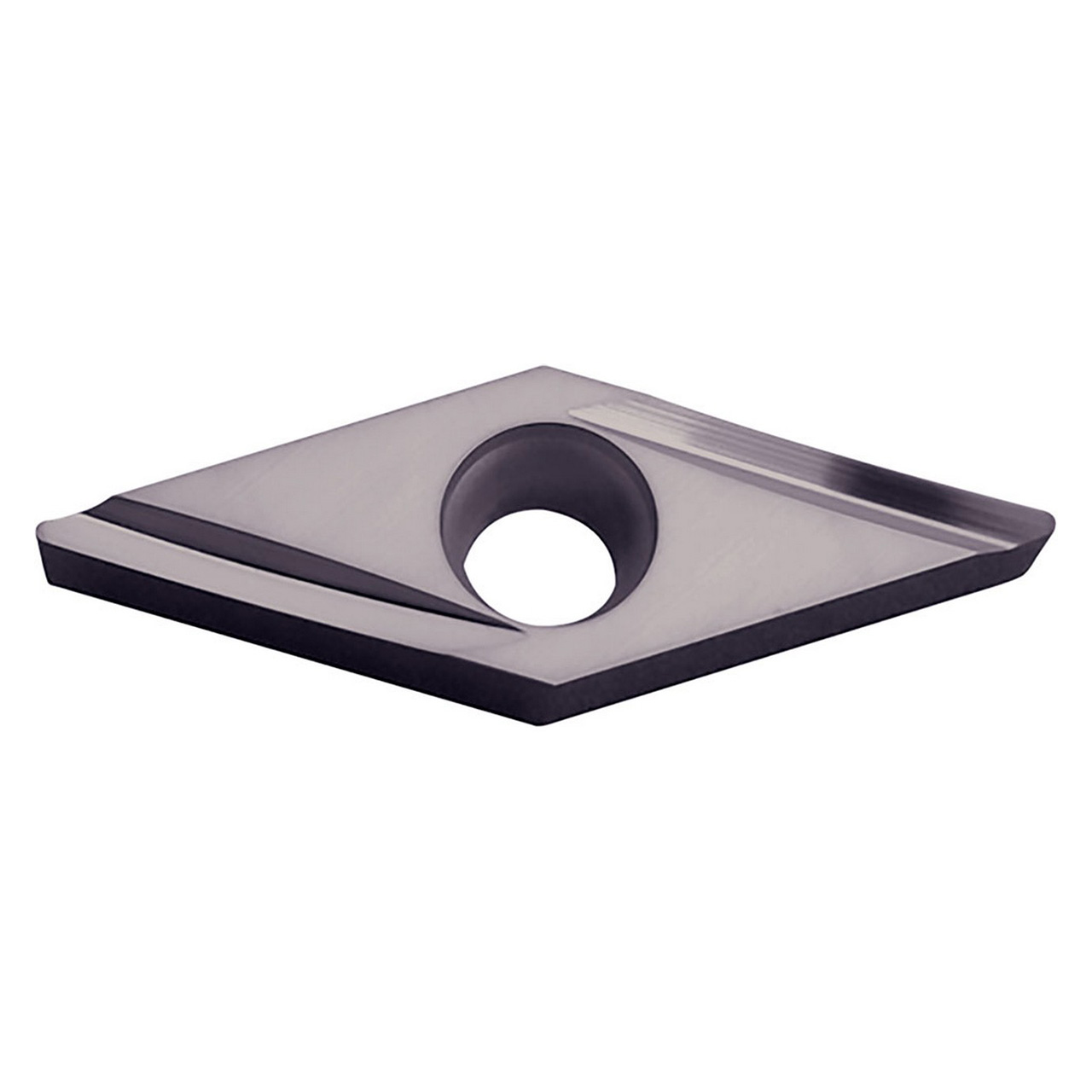

Features:
- Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
- 2 Cutting edges
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| EDP Number | TKT03771 |
| Inscribed Circle (Inch) | 1/4" |
| Inscribed Circle (mm) | 6.35mm |
| Corner Radius (Inch) | 0.001" |
| Corner Radius (mm) | 0.03mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
| Chipbreaker | Y |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Grade | PR930 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 35 Degree Diamond |
| Insert Included Angle ( Degree) | 35 Degree |
| Insert Size | 2201 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
VBGT
Insert Size:
2201
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Decimal Inch):
0.0010"
Corner Radius (mm):
0.03mm
Manufacturer's Grade:
PR930
