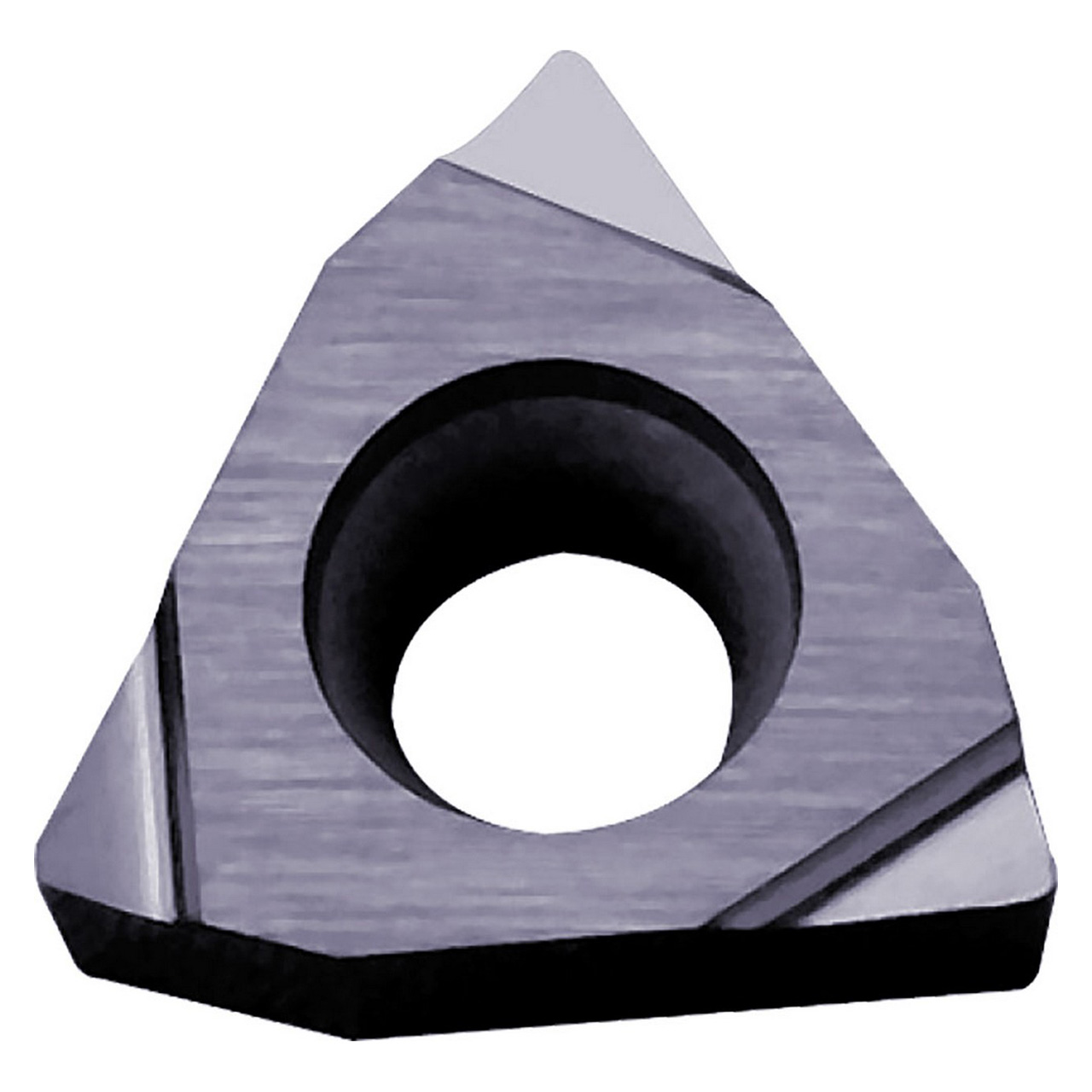

Features:
- Insert for boring, internal facing
- Sharp edge/minus tolerance corner radius with 3 cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| EDP Number | TLC08416 |
| Inscribed Circle (Inch) | 3/16" |
| Inscribed Circle (mm) | 4.76mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Boring | Internal Facing |
| Chipbreaker | F |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Trigon |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 15151 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
WBET
Insert Size:
15151
Material:
Carbide;Inscribed Circle (Inch)=3/16"""
Inscribed Circle (Decimal Inch):
0.1874"
Inscribed Circle (mm):
4.76mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
PR1535
