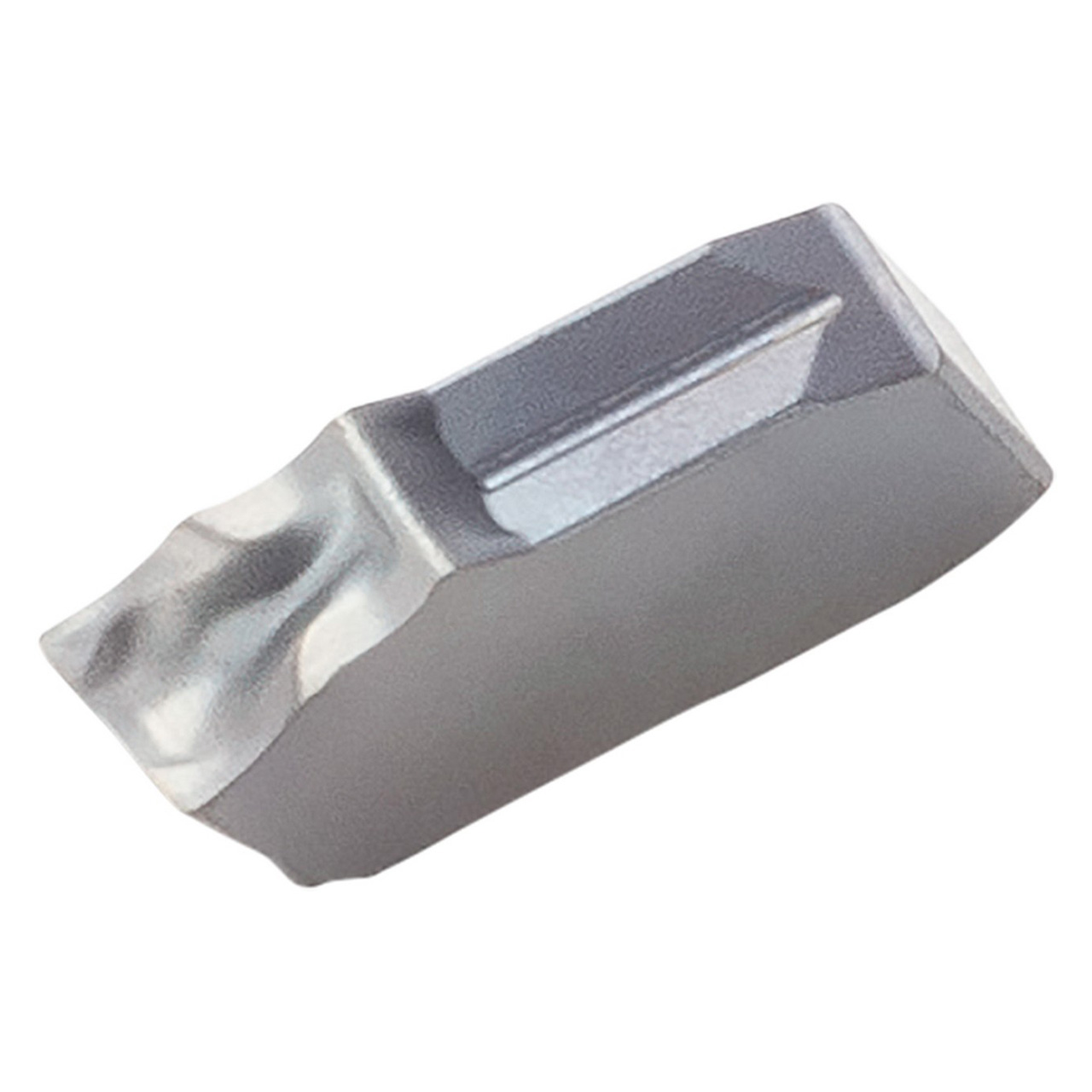

Features:
- Insert for Cut-Off
- 6 Degree lead angle
- 1 Cutting edge
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| Tool Number | TLC40036 |
| Cutting Width (Decimal Inch) | 0.0787" |
| Cutting Width (mm) | 2.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0787" |
| Cutting Width Maximum (mm) | 2.00mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Application | Cut-Off |
| Chipbreaker | PM |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Self Clamp |
| Insert Grade | PR1535 |
| Insert Size | 20 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=PKM"
Insert Size:
20
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.0787"
Cutting Width (mm):
2.00mm
Manufacturer's Grade:
PR1535
Series:
KPK
