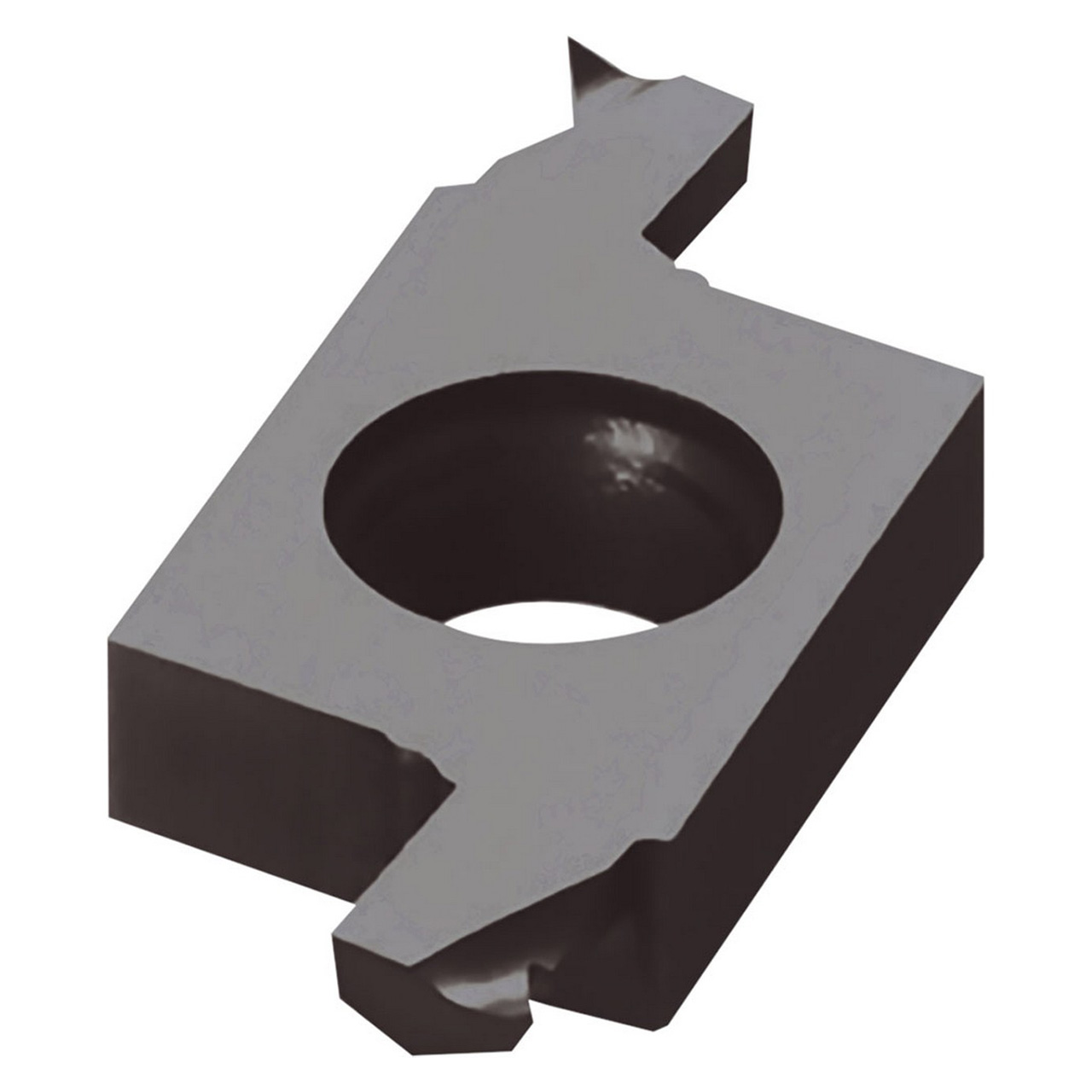

Features:
- Twin bar: Horizontal type for micro boring applications
- Compatible with STWR-15, SSTWR15 style holders
Product Specifications
| EDP Number | TLC58684 |
| Shank Width (Decimal Inch) | 0.6299" |
| Minimum Bore Diameter (Decimal Inch) | 0.0787" |
| Minimum Bore Diameter (mm) | 2.00mm |
| Tool Entering Angle ( Degree) | 100 Degree |
| Usable Length (Decimal Inch) | 0.1181" |
| Usable Length (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Stainless Steel (M) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
TWB;Minimum Bore Diameter (Decimal Inch)=0.0787"""
Minimum Bore Diameter (mm):
2.00mm
Maximum Bore Depth (Decimal Inch):
0.1181"
Maximum Bore Depth (mm):
3.00mm
