Features:

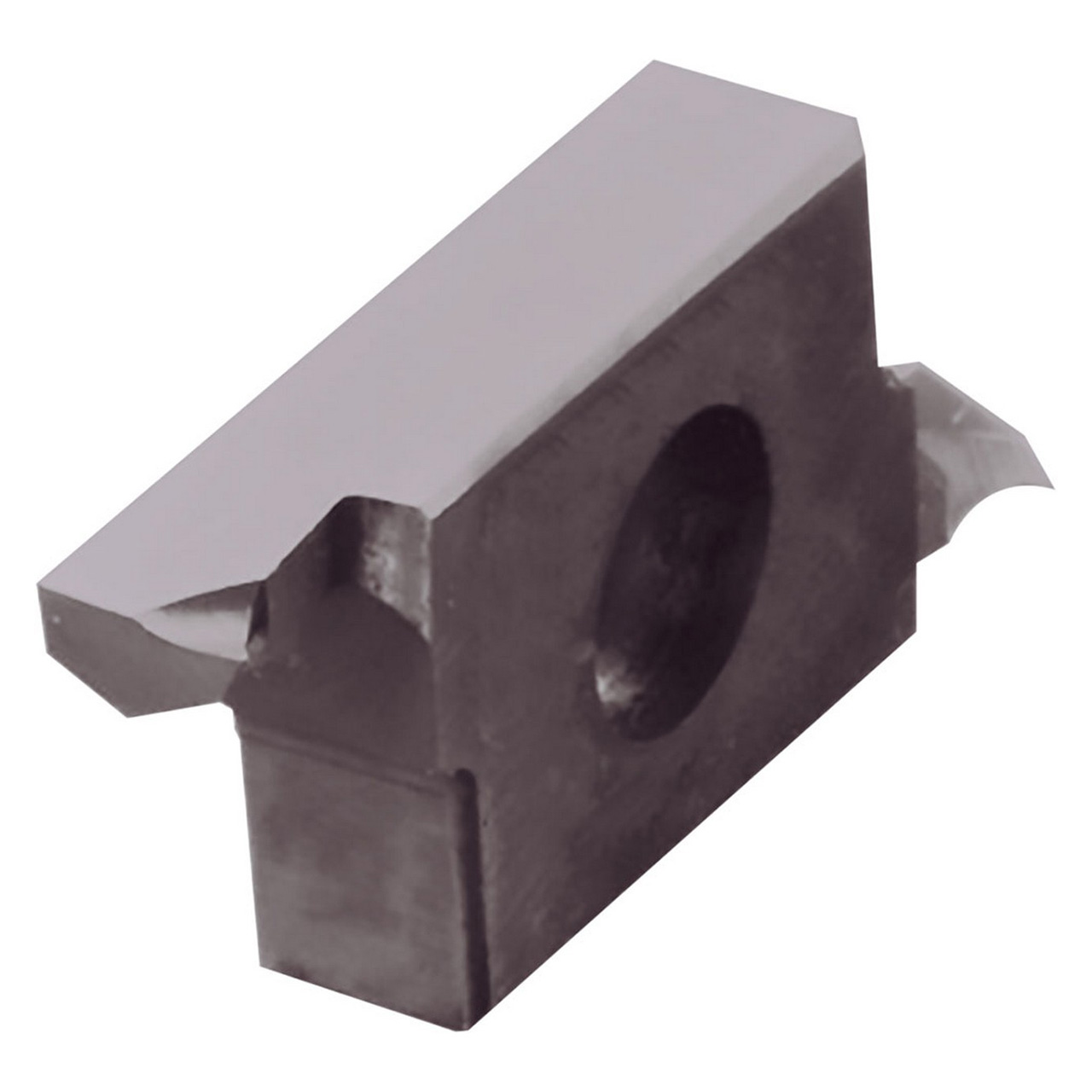

- Twin bar: Vertical type for micro boring applications
- Compatible with STWSR-15T style holders
Product Specifications
| EDP Number | TLC58696 |
| Shank Width (Decimal Inch) | 0.7874" |
| Minimum Bore Diameter (Decimal Inch) | 0.0984" |
| Minimum Bore Diameter (mm) | 2.50mm |
| Tool Entering Angle ( Degree) | 100 Degree |
| Usable Length (Decimal Inch) | 0.1181" |
| Usable Length (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Stainless Steel (M) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
TWB;Minimum Bore Diameter (Decimal Inch)=0.0984"""
Minimum Bore Diameter (mm):
2.50mm
Maximum Bore Depth (Decimal Inch):
0.1181"
Maximum Bore Depth (mm):
3.00mm
