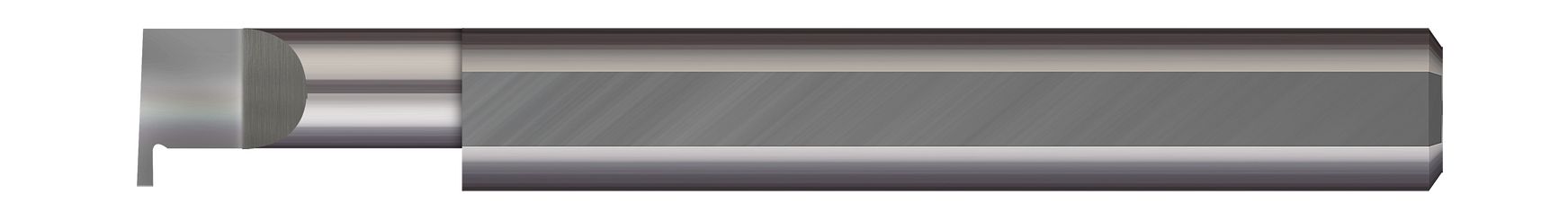

Micro 100 RR-069-6X | 0.3970" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.0690" Width x 0.1000" Projection x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

$65.00 $60.89
(You save $4.11)
Brand:
Micro 100
SKU:
25130759
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
RR-069-6X

Micro 100's RR / RRM product line of right hand retaining ring grooving tools is offered fully stocked in uncoated, TiN coating, or AlTiN coating options for added lubricity and increased wear resistance.

  • Designed for generating retaining ring grooves
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3970"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.375" (3/8)
Projection (Inch) 0.1000"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Face Dimension 0.188" (3/16)
Neck Diameter (Inch) 0.2700"
Overall Length (Inch) 2.50" (2-1/2)
Split Length (Inch) 0.210"
Tooth Width (Inch) 0.0690"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
