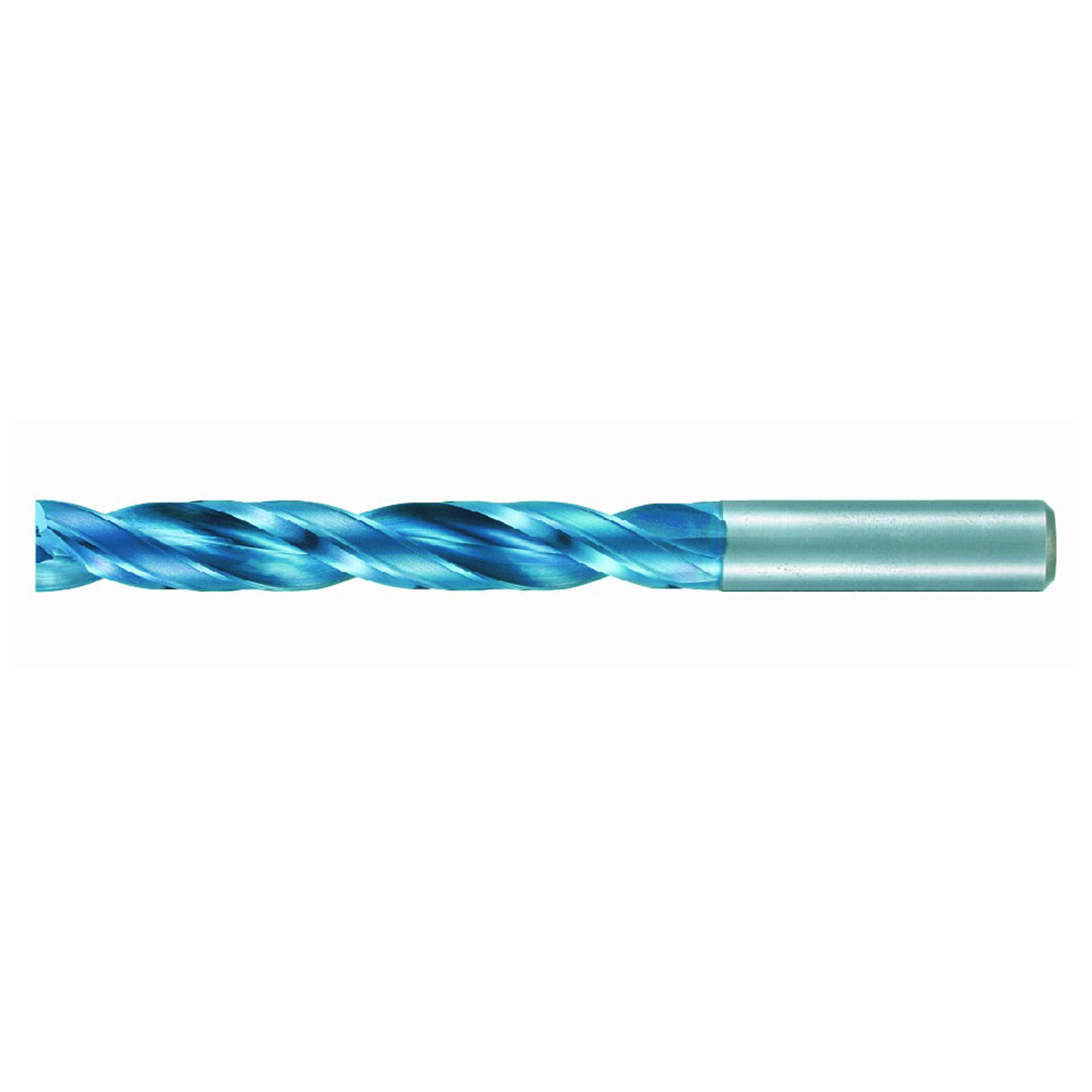

Product Specifications
| # Manufacturer Number | 1489948 |
| Diameter (Inch) | 9/16" |
| Shank Size (mm) | 15.00mm |
| Flute Length (mm) | 93.00mm |
| Overall Length (mm) | 169.00mm |
| Drill Point Angle | 180 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Finish / Coating | Aqua EX |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
9/16";Drill Bit Size (Decimal Inch)=0.5625""
Drill Bit Size (mm):
14.29mm
Drill Point Angle:
180 Degree
Flute Length (Inch):
3-2/3";Flute Length (Decimal Inch)=3.6614""
Flute Length (mm):
93.00mm
Overall Length (Inch):
6 2/3";Overall Length (Decimal Inch)=6.6535""
Overall Length (mm):
169.00mm
Material:
Carbide
Finish/Coating:
Aqua EX
Flute Type:
Conventional Spiral
Cutting Direction:
Conventional Spiral
Shank Type:
Endmill Type Shank
Coolant Through:
Yes
