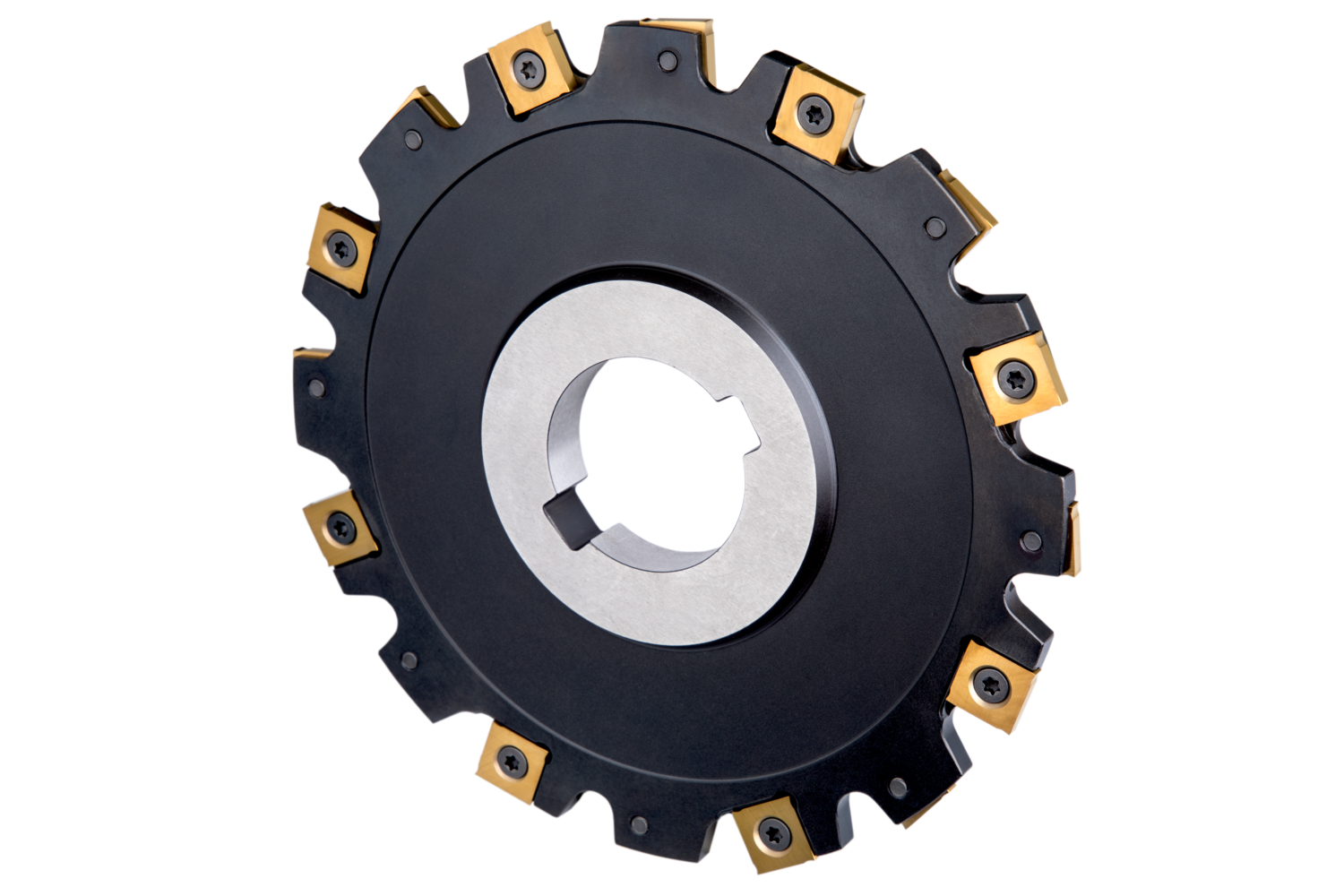

Disc mill with positve/negative geometry which utilises 12 off SNHQ 1205.. double-sided inserts, cutting diameter 125 mm with 90° approach angle and 40 mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 10 mm.
Product Specifications
| EDP Number | 6758378 |
| Peripheral Effective Cutting Edge Count | 12 |
| Insert Index Count | 12 |
| Cutting width (mm) | 10 mm |
| Max Cutting Depth (mm) | 31 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 6700 |
| Connection Bore Diameter (mm) | 40 mm |
| Hub Diameter (mm) | 58 mm |
| Cutting Diameter (mm) | 125 mm |
| Cutting Diameter (Inch) | 4.921" |
| Number of Peripheral Edges in The Tool | 12 |
