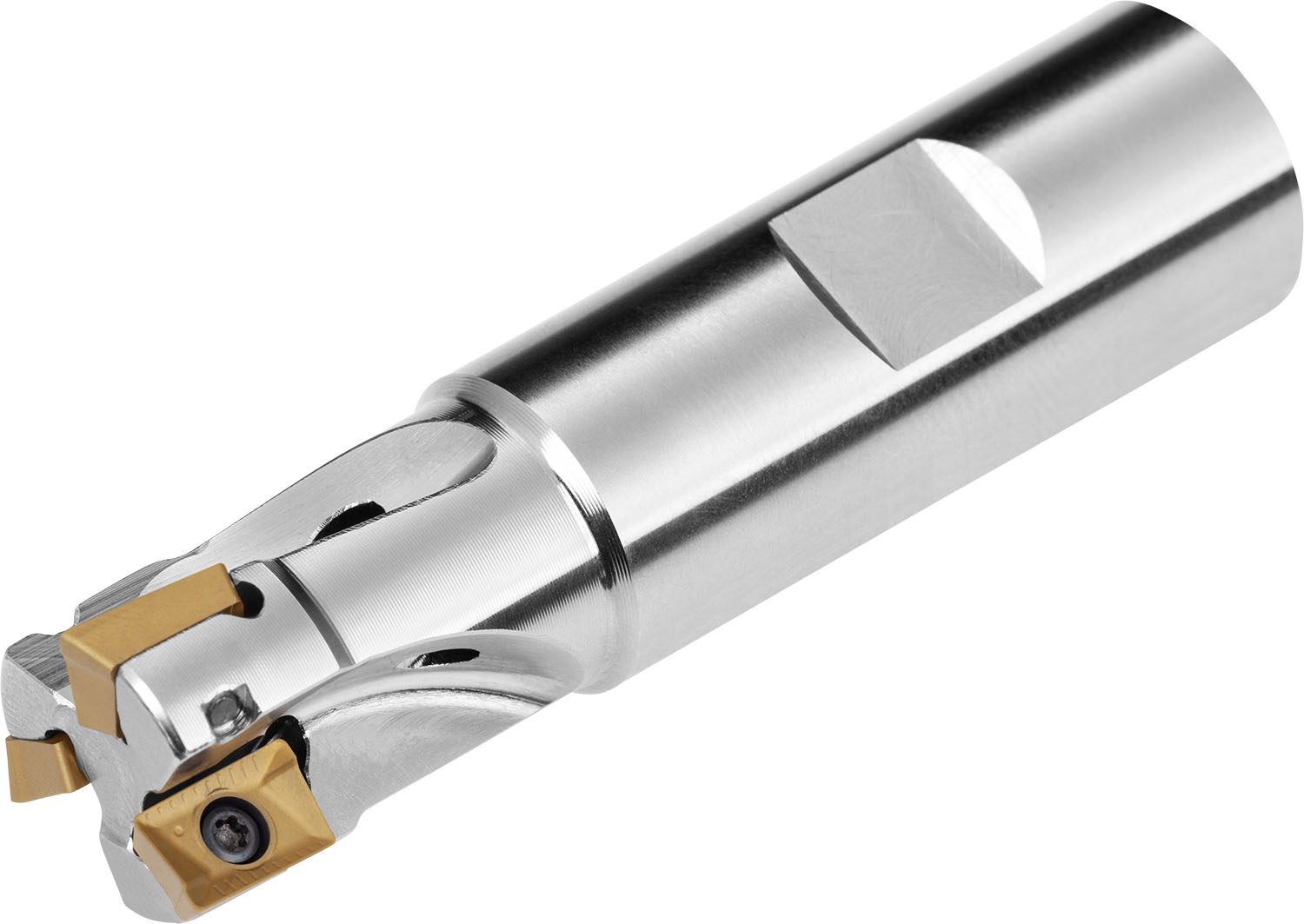

Shoulder mill with double positive geometry which utilises 1 off APKT 1003.. single-sided insert, cutting diameter 12 mm with 90° approach angle and 16 mm Weldon shank according to DIN 1835B, 75 mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6758362 |
| Peripheral Effective Cutting Edge Count | 1 |
| Insert Index Count | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 2 |
| Radial Rake Angle | 12 |
| Max Rotational Speed | 35600 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 12 mm |
| Cutting Diameter (Inch) | 0.472" |
| Overall Length (mm) | 97 mm |
| Overall Length (Inch) | 3.819" |
| Usable Length (mm) | 27 mm |
