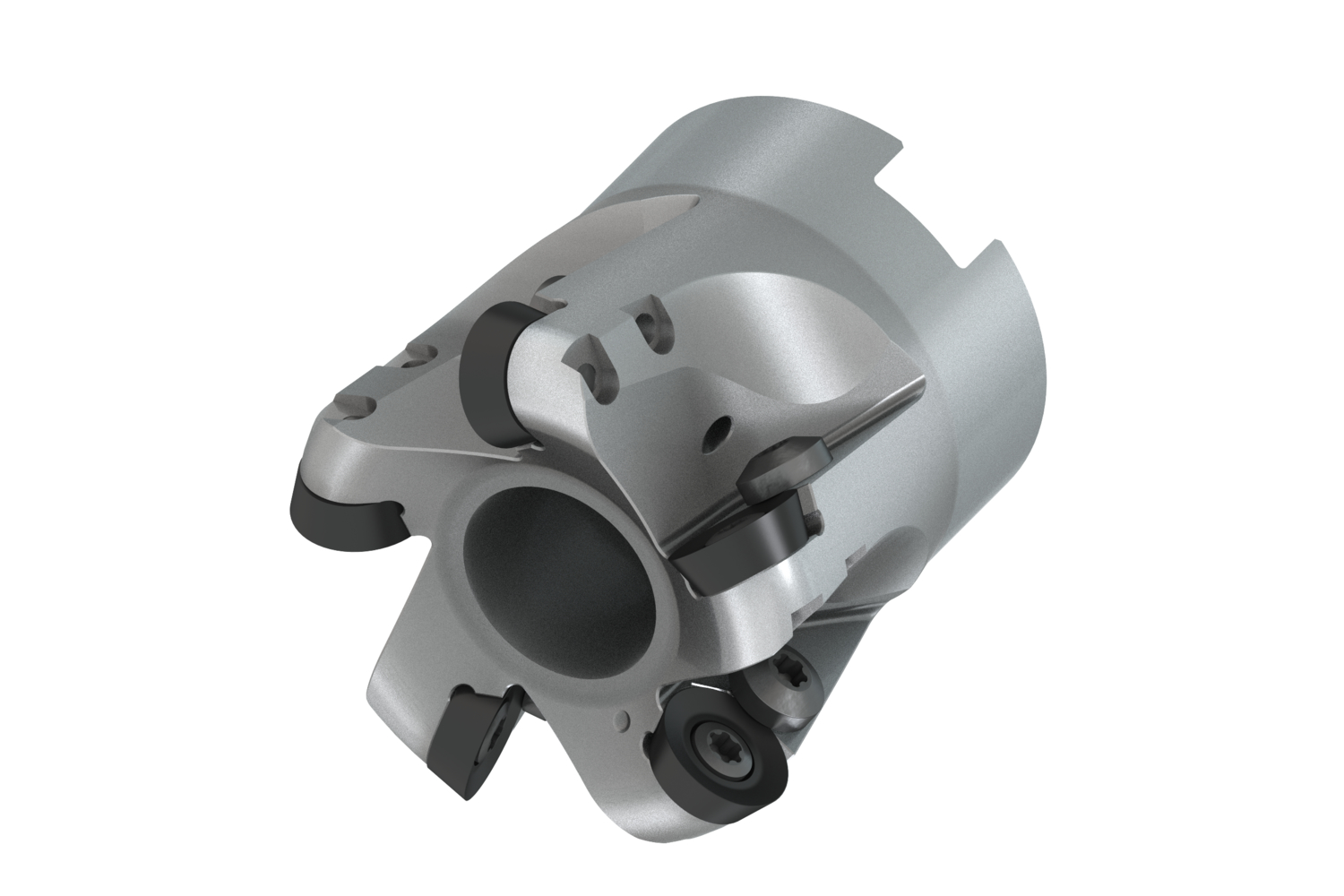

Copy face mill with double positive geometry which utilises 5 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 2.000" with 0.750" connection bore according to DIN 8030-A, 1.968" functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.118".
Product Specifications
| EDP Number | 7979738 |
| Peripheral Effective Cutting Edge Count | 5 |
| Max Depth of Cut (Inch) | 0.118" |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | 2 |
| Max Rotational Speed | 15200 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Max Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 1.968" |
| Clamping Type Code | System SC |
