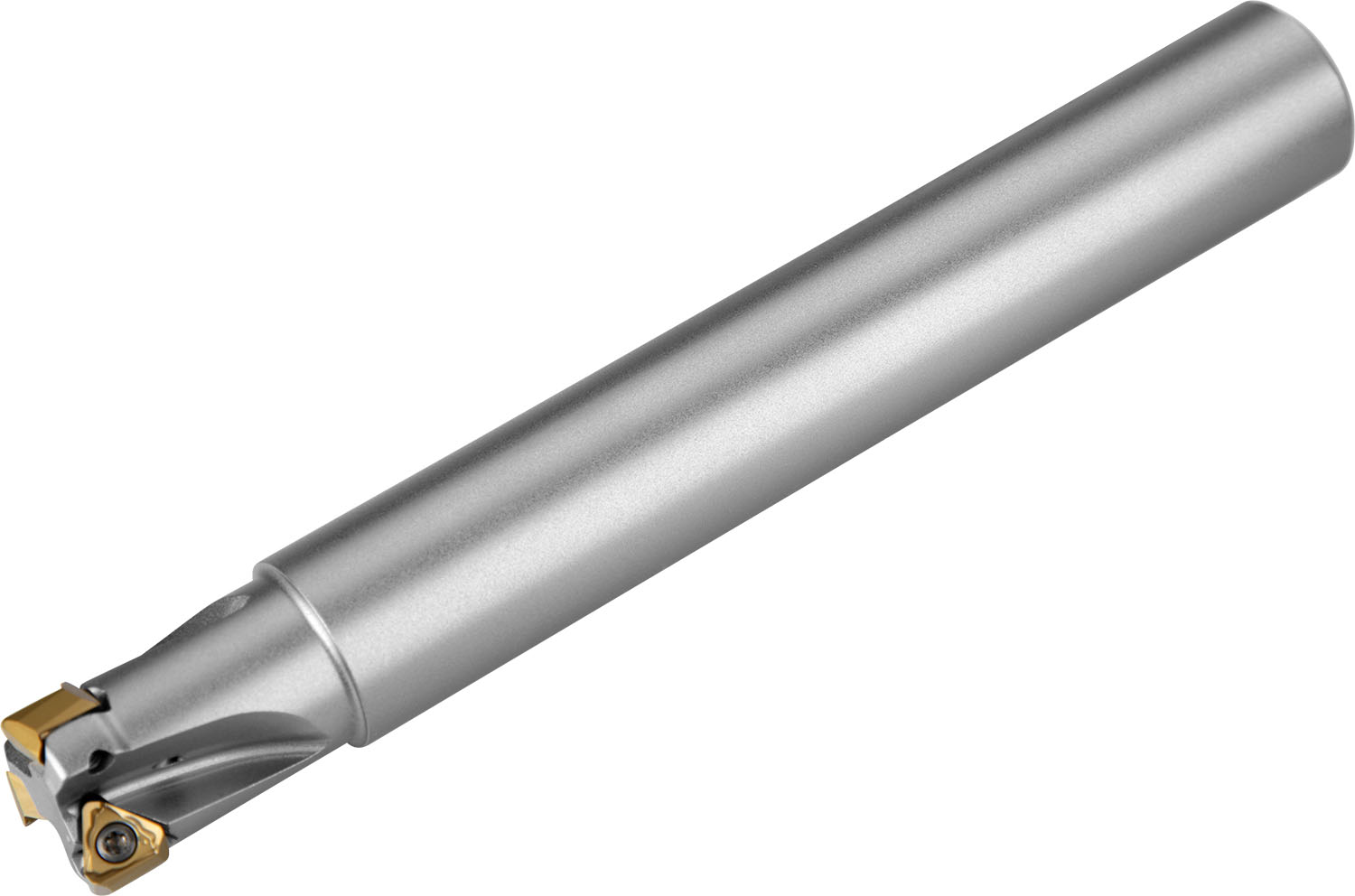

Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter 22 mm with 90 Degree approach angle and 25 mm parallel shank according to DIN 1835A, 50 mm functional and 180 mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7178467 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -11 |
| Radial Rake Angle | -16.5 |
| Max Rotational Speed | 26300 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 22 mm |
| Cutting Diameter (Inch) | 0.866" |
| Overall Length (mm) | 65 mm |
| Overall Length (Inch) | 2.559" |
| Usable Length (mm) | 50 mm |
| Country of origin | Czech Republic |
