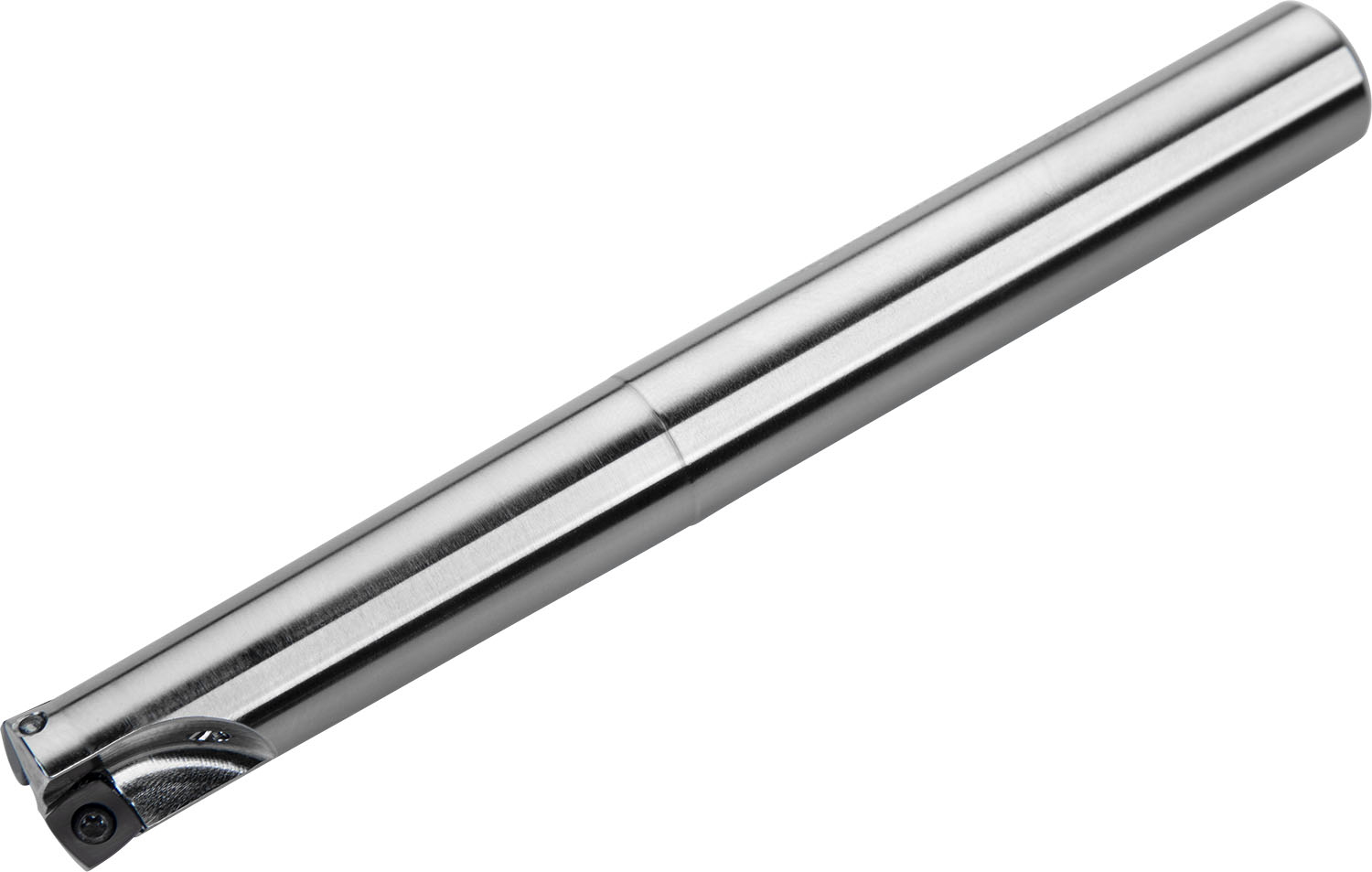

Face mill with positve/negative geometry which utilises 3 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 25 to maximum 34.8 mm with 45° approach angle and 25 mm Weldon shank according to DIN 1835B, 98 mm overall length, through coolant for face milling and chamfering with a maximum depth of cut of 4.5 mm.
Product Specifications
| EDP Number | 6758315 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 20 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 22000 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Max Cutting Diameter (mm) | 34.8 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 42 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
