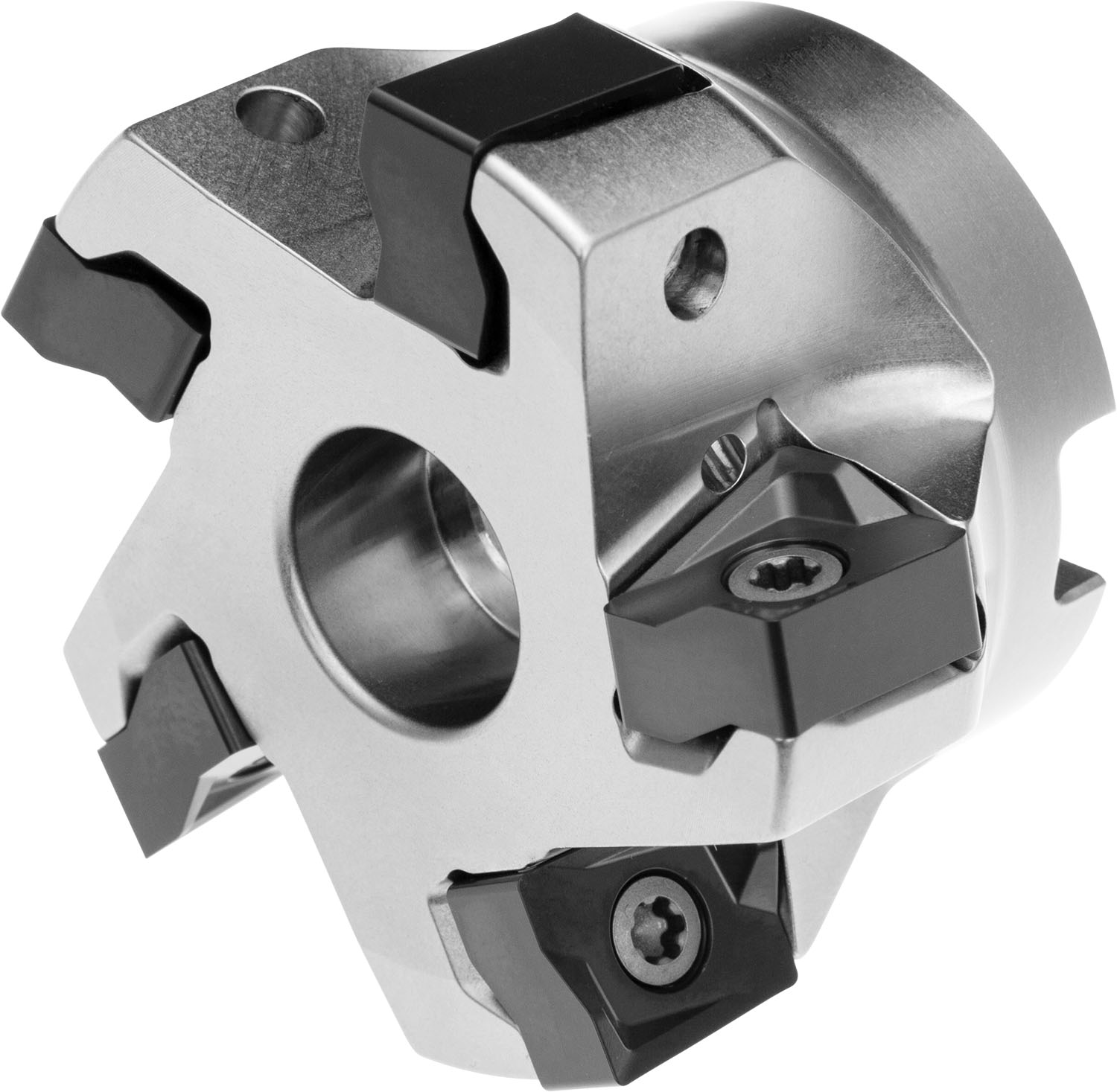

Shoulder mill with double negative geometry which utilises 4 off LNMU 1607.. or LNGU 1607.. double-sided inserts, cutting diameter 63 mm with 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6760308 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -10.5 |
| Max Rotational Speed | 7600 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.3 mm |
| Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 2.48" |
| Functional Length (mm) | 40 mm |
