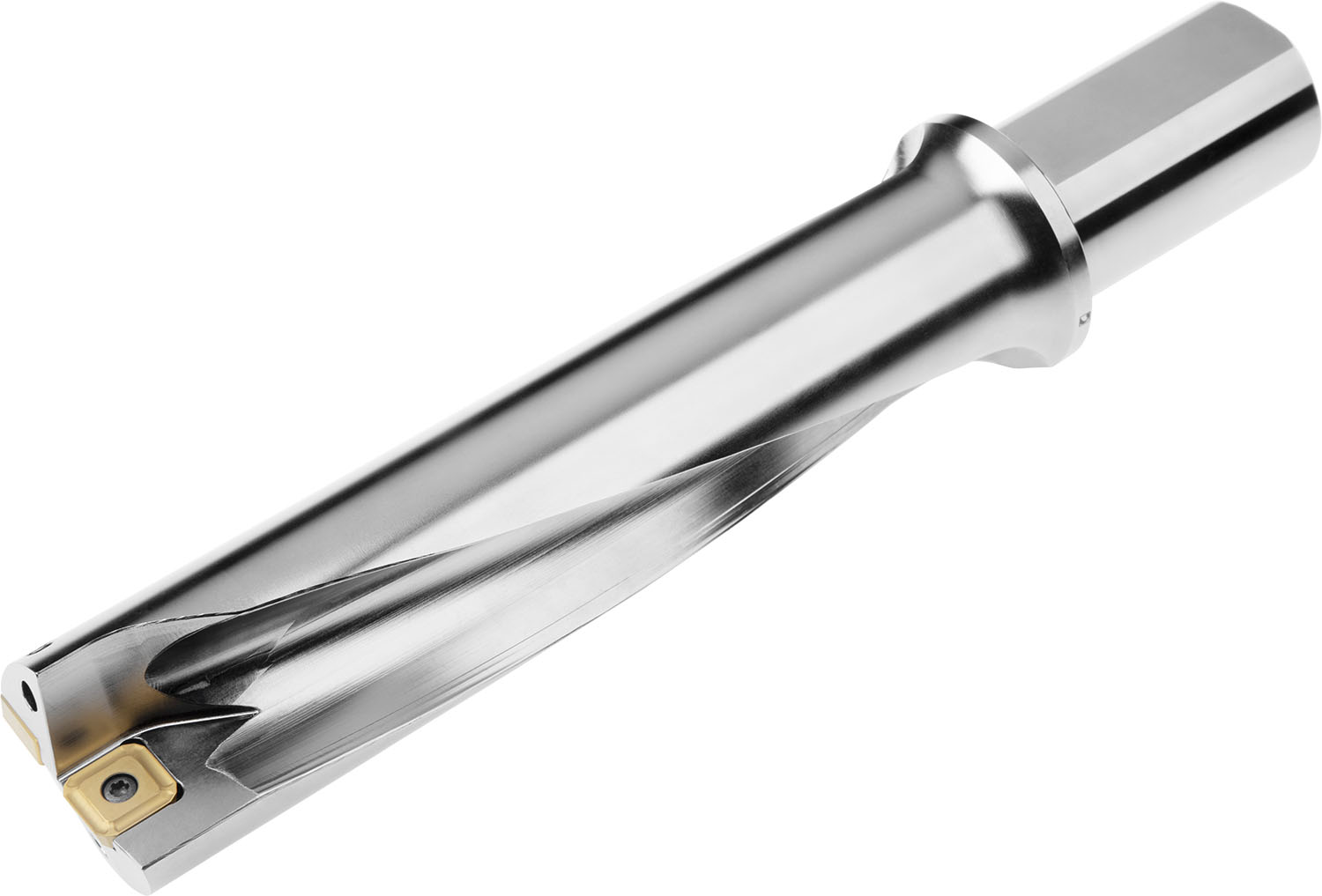

Indexable insert drill which utilises an XPET 1904.. insert in the central pocket and a SCET 1505.. insert in the peripheral pocket, cutting diameter 57mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D.
Product Specifications
| EDP Number | 6760988 |
| Max Depth of Cut (mm) | 228 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.35 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 57 mm |
| Cutting Diameter (Inch) | 2.244" |
| Overall Length (mm) | 323 mm |
| Overall Length (Inch) | 12.717" |
| Usable Length (mm) | 240 mm |
| Protruding Length (mm) | 253 mm |
| Shank Length (mm) | 70 mm |
| Cutting Edge Count | 1 |
