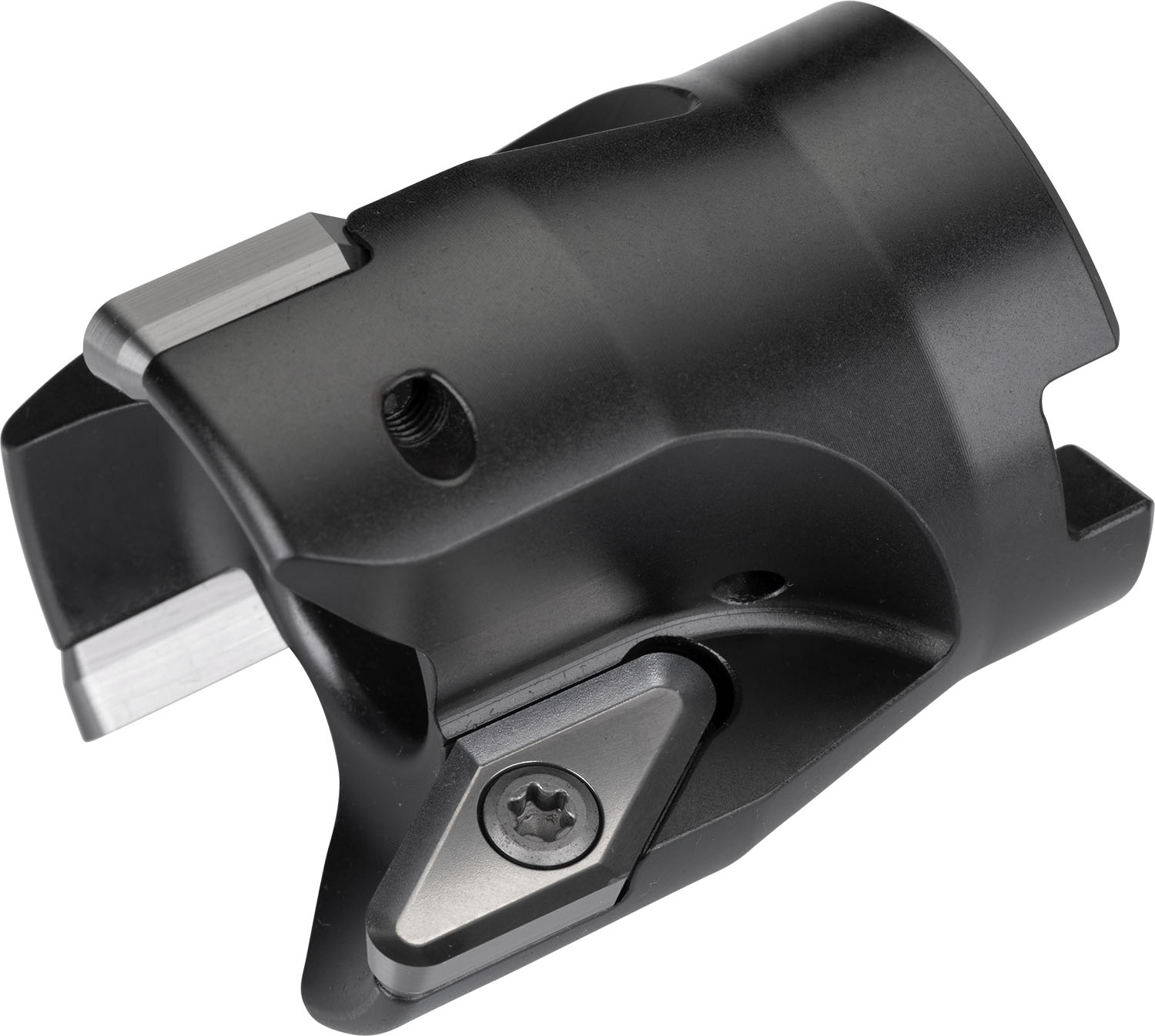

End mill with double positive geometry which utilises 5 off VCGT 220530F-FA single-sided inserts, cutting diameter 80 mm with 90 Degree approach angle and 27 mm connection bore according to DIN 8030-A, 56 mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0) mm.
Product Specifications
| EDP Number | 6757988 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 3 |
| Radial Rake Angle | 8 |
| Max Rotational Speed | 6600 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 20 mm |
| Hub Diameter (mm) | 63 mm |
| Keyway Width (mm) | 12 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Functional Length (mm) | 56 mm |
| Country of origin | Czech Republic |
