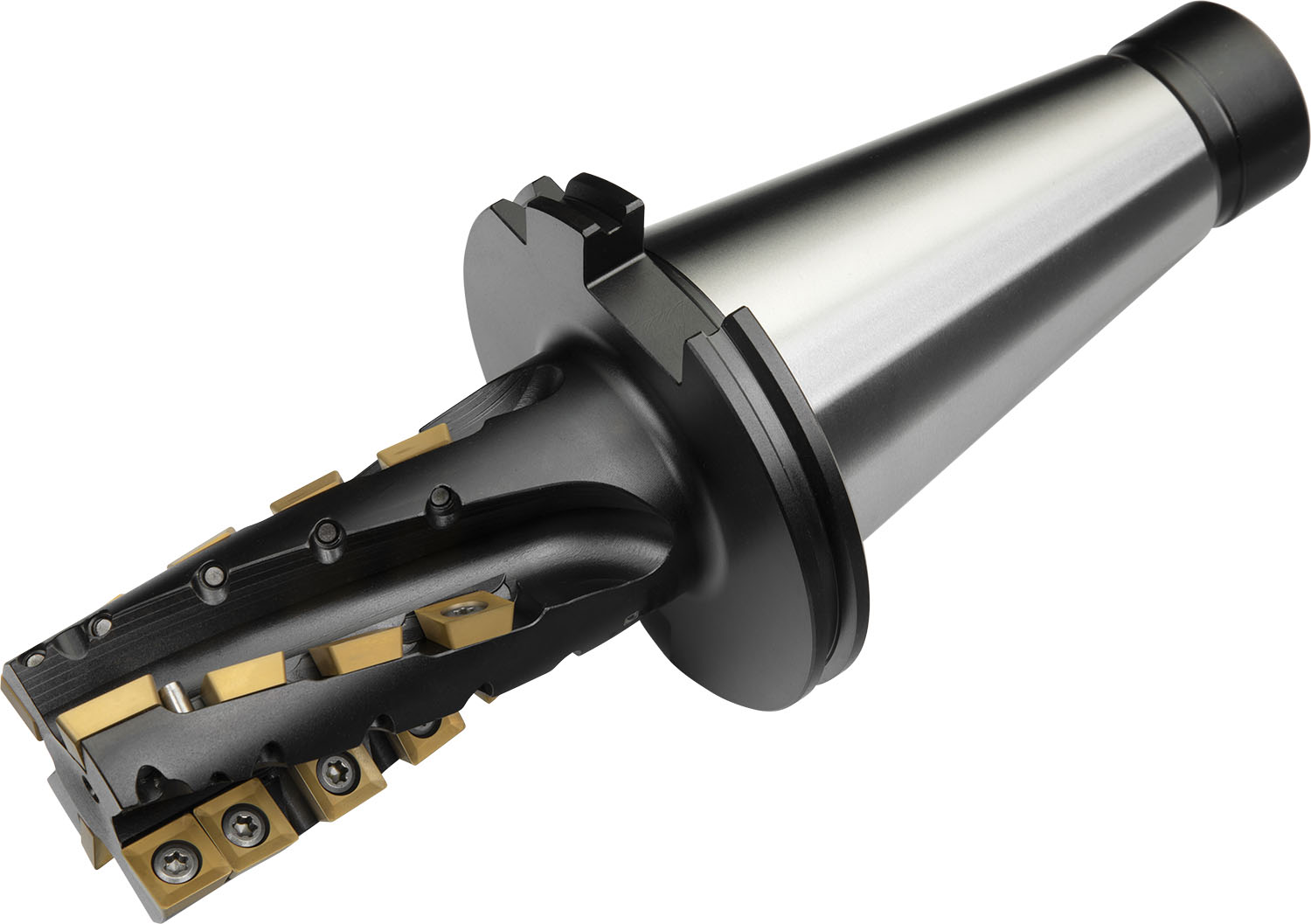

Shoulder mill with extended flute with positve/negative geometry which utilises 3 off APE. 1504.. and 30 SPE. 1204.. single-sided inserts, cutting diameter 80 mm with 90 Degree approach angle and BT 50 taper shank according to JIS B 6339, 95 mm functional and 275 mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95 mm.
Product Specifications
| EDP Number | 6757751 |
| Insert Index Count | 33 |
| Maximum Depth of Cut (mm) | 95 mm |
| Flute Count | 6 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 7500 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Overall Length (mm) | 170 mm |
| Overall Length (Inch) | 6.693" |
| Functional Length (mm) | 151 mm |
| Country of origin | Czech Republic |
