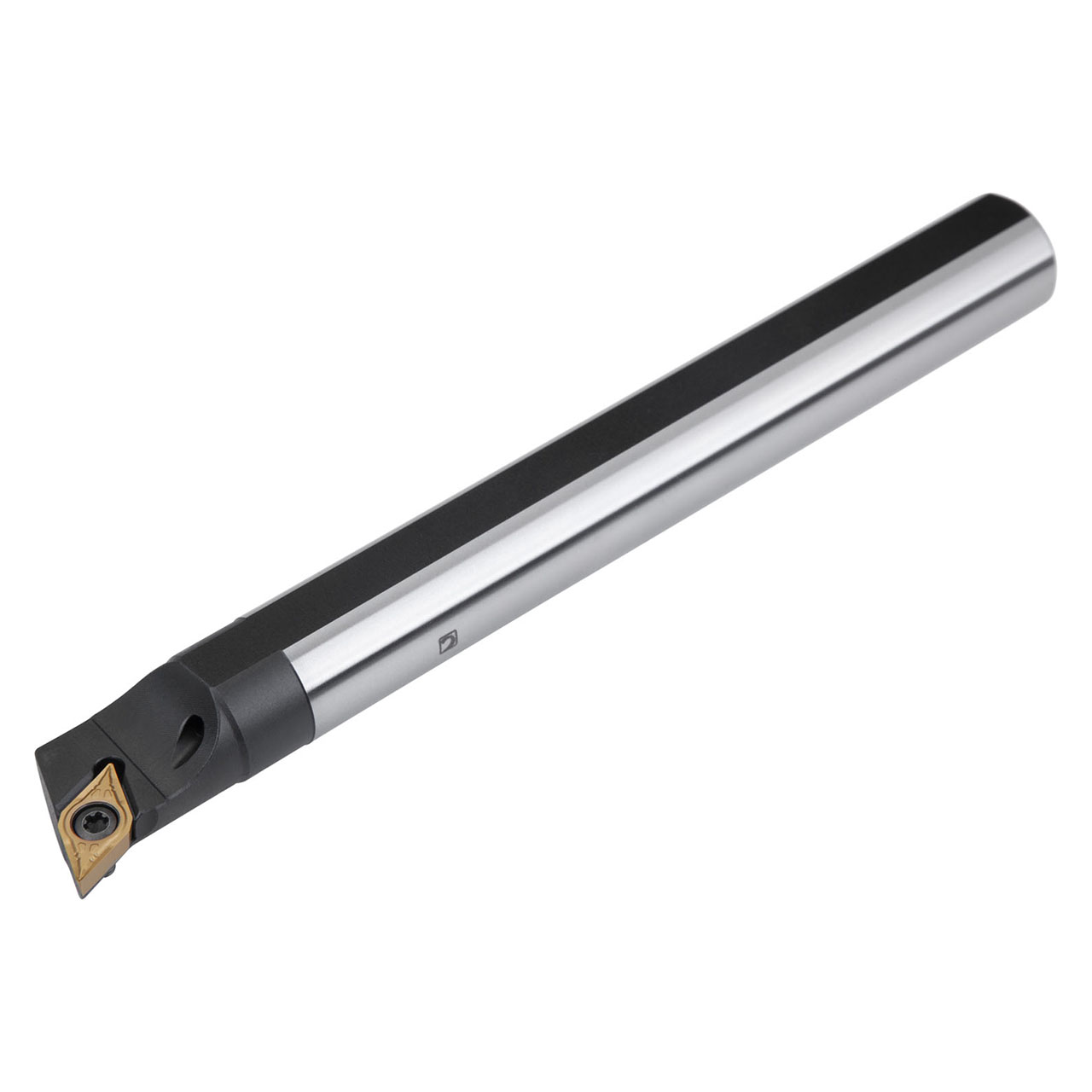

Screw clamp boring bar for holding a 55 Degree rhombus positive insert with an inscribed circle diameter of 1/4'', 3/32'' thick (ANSI designation DC.. 21.5. ), right hand 107 Degree30' end cutting with off-set shank, steel with coolant hole, 3/8'' diameter x 6'' long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6788444 |
| Functional Width (Inch) | 0.375" |
| Inclination Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 9.5 mm |
| Connection Diameter (Inch) | 0.375" |
| Shank Height (Inch) | 0.336" |
| Minimum Bore Diameter (Inch) | 0.598" |
| Functional Length (Inch) | 6" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
11/32"
Shank Height (Decimal Inch):
0.3360"
Shank Height (mm):
8.53mm
