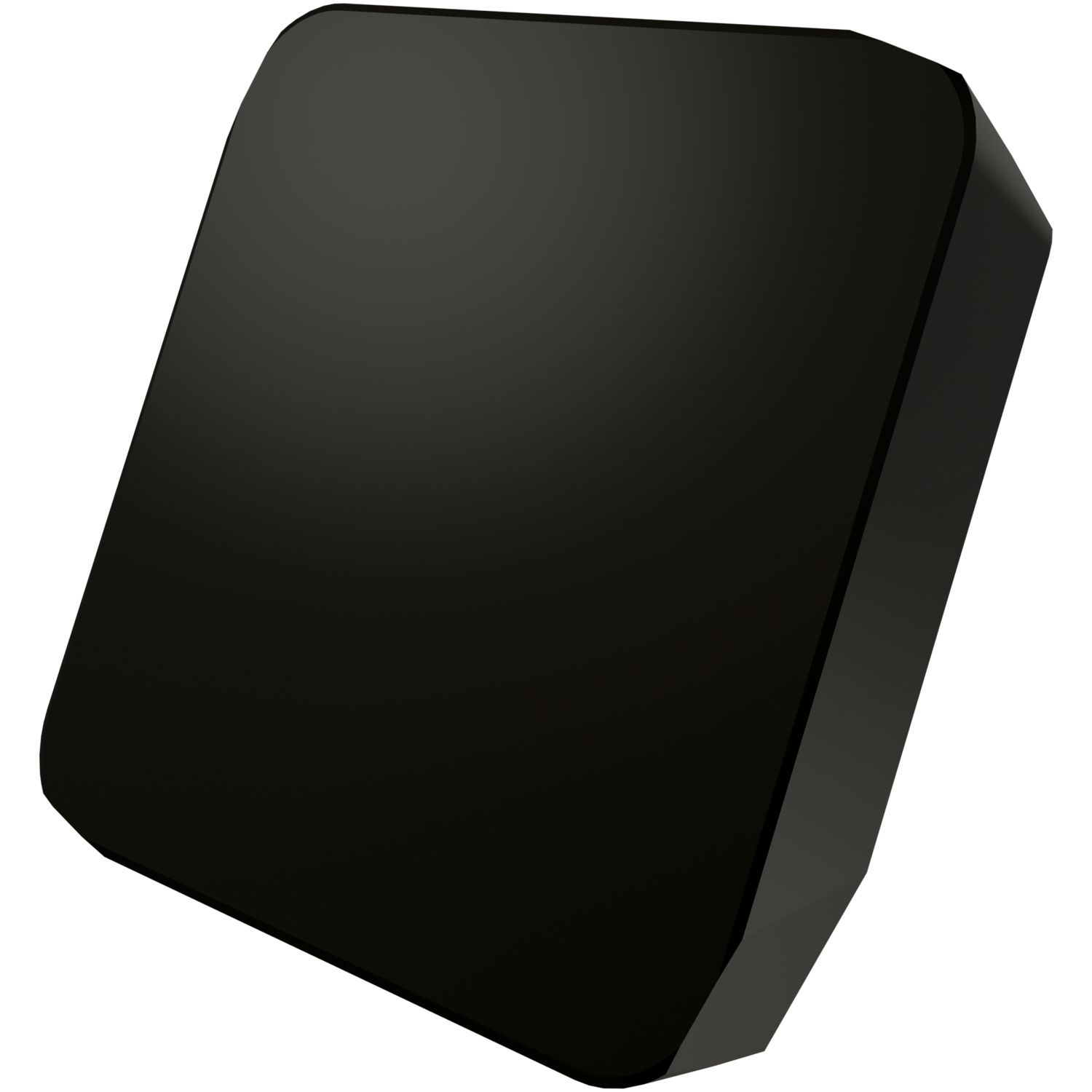

Single-sided milling insert SPKN 1504 with a plane rake surface, square for right hand cutting with a maximum depth of cut of 13.0 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide.
Product Specifications
| EDP Number | 6754579 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 15.875 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| M-Dimension (mm) | 1.26 mm |
| M-Dimension (Inch) | 0.05" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Wiper Edge Length (mm) | 1.7 mm |
| Wiper Edge Length (Inch) | 0.669" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
