Features:
- REGO-FIX invented the ER collet
- Superior collet slot design
- Superior surface finish
- INoX - Rust Probitive Stainless Steel
Product Specifications
| Manufacturer Part Number | 1111.06004 |
| Coolant Thru Capable | Yes |
| TIR (Decimal Inch) | 0.0004" |
| TIR (mm) | 0.01mm |
| Clamping Range (Decimal Inch) | 0.2362" - 0.2264" |
| Clamping Range (mm) | 6.0mm - 5.75mm |
| Length (Decimal Inch) | 0.7090" |
| Width (Decimal Inch) | 0.4488" |

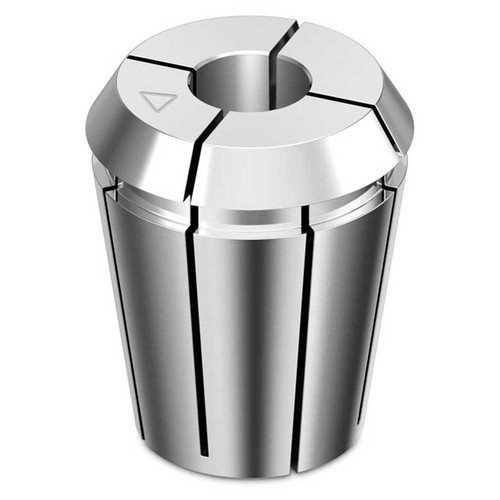

| Product Type | ER11 Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
17/72" - 12/53"""
Clamping Range (Decimal Inch):
0.2362" - 0.2264"""
Clamping Range (mm):
6.00mm - 5.75mm
TIR (Decimal Inch):
0.0004 "
Collet Series:
ER11
interval quantity:
1
