Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile
Product Specifications
| # MFG | 17228 |

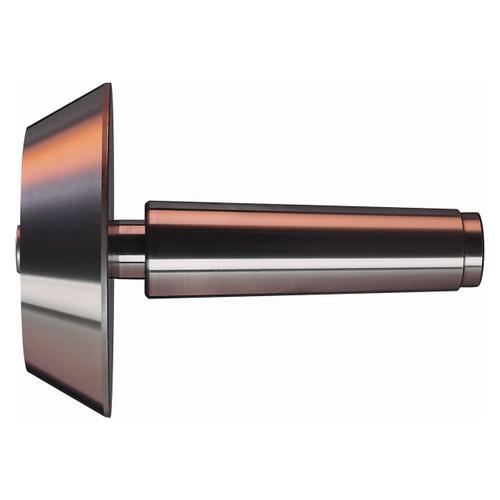

| Type | Type III Bell Head Center |
| Taper | 8 Jarno |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 4.950" |
| Point Length (Inch) | 1.160" |
| Gage Line to Point (Inch) | 1.690" |
| Max Thrust Load (lbs) | 235 lbs. |
| Max Spring Travel (Inch) | 0.125" |
| Max Workpiece Weight (lbs) | 400 lbs. |
| Max RPM | 3000 |
| Series | Concentric Spring Loaded Live Centers |
