Product Specifications

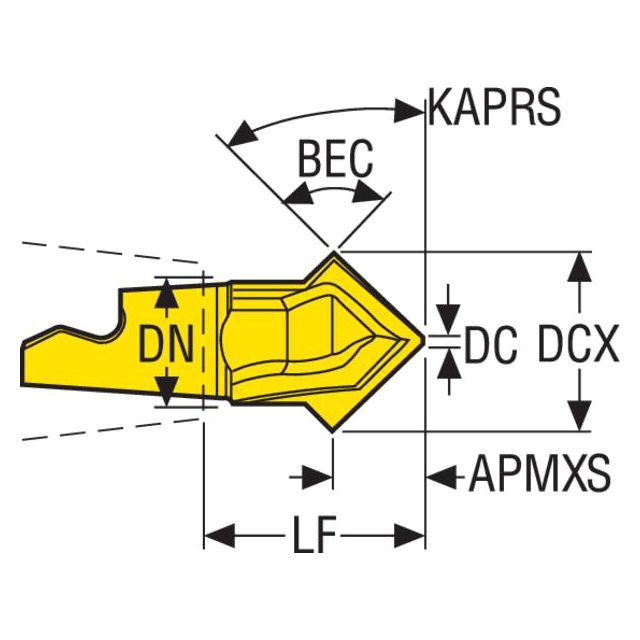

| Manufacturer Part Number | 00023791 |
| Cutting Diameter (Decimal Inch) | 0.024" |
| Cutting Diameter (mm) | 0.60mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.315" |
| Maximum Cutting Diameter (mm) | 8.00mm |
| Neck Diameter (Decimal Inch) | 0.236" |
| Neck Diameter (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.146" |
| Maximum Depth of Cut (mm) | 3.70mm |
| Corner Chamfer Width (Decimal Inch) | 0.146" |
| Corner Chamfer Width (mm) | 3.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.146" |
| Cutting Edge Effective Length (mm) | 3.70mm |
| Functional Length (Decimal Inch) | 0.335" |
| Functional Length (mm) | 8.50mm |
| Torque (Nm) | 4Nm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Chamfer Milling Tip Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
2/83"
Cutting Diameter (Decimal Inch):
0.0240"
Cutting Diameter (mm):
0.60mm
interval quantity:
1
