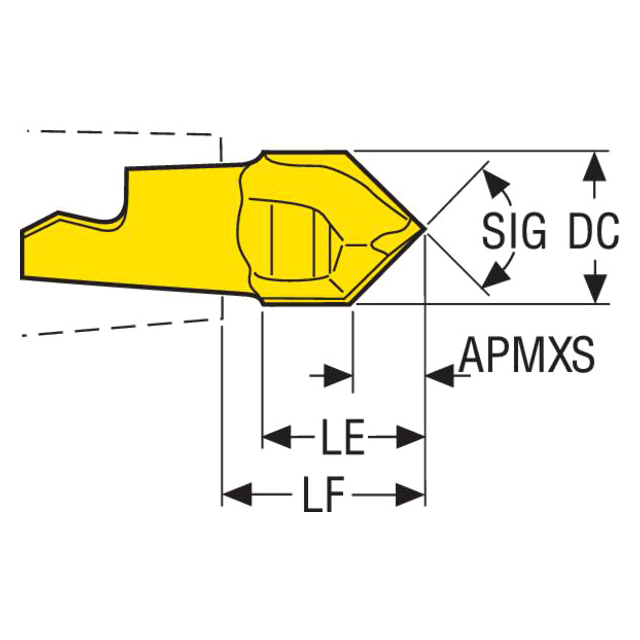

Product Specifications
| Manufacturer Part Number | 74080707 |
| Cutting Diameter (Decimal Inch) | 0.236" |
| Cutting Diameter (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.063" |
| Maximum Depth of Cut (mm) | 1.60mm |
| Corner Chamfer Width (Decimal Inch) | 0.118" |
| Corner Chamfer Width (mm) | 3.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.247" |
| Cutting Edge Effective Length (mm) | 6.27mm |
| Functional Length (Decimal Inch) | 0.283" |
| Functional Length (mm) | 7.19mm |
| Torque (Nm) | 4Nm |
| Cutting Edge Count | 1 |
| Rake Radial Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 60 Degree |
| Point Length (Decimal Inch) | 0.063" |
| Point Length (mm) | 1.60mm |
| Point Angle (Degree) | 120 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Chamfer Milling Tip Insert |
