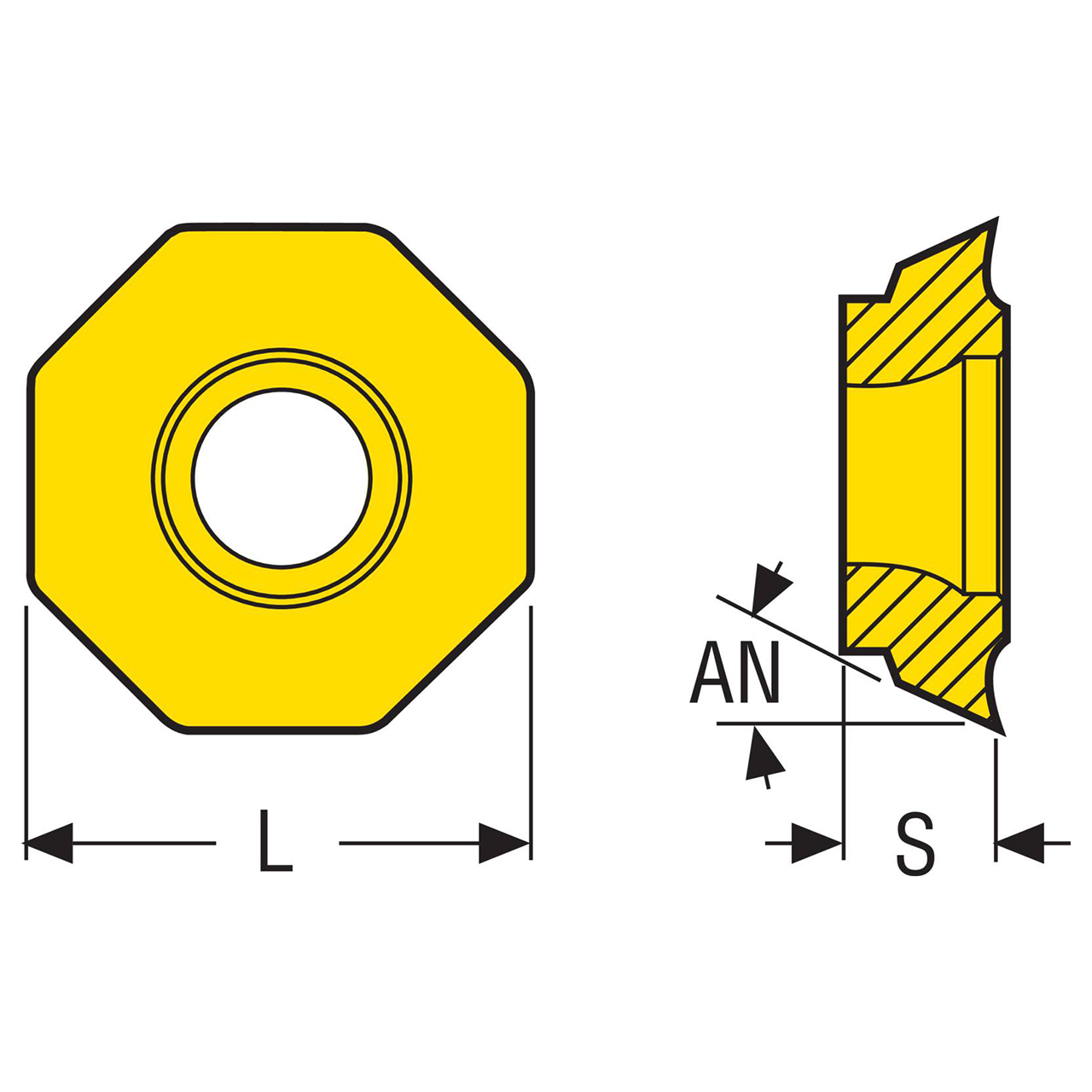

Seco Tools 00077640 | 0.519" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

$18.02
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
41/79"
Inscribed Circle (Decimal Inch):
0.5190"
Inscribed Circle (mm):
13.18mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
1
SKU:
23275190
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 00077640 | 0.519" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

Product Specifications
Manufacturer Part Number00077640
Inscribed Circle Diameter (Decimal Inch)0.519"
Inscribed Circle Diameter (mm)13.18mm
Wiper Edge Length (Decimal Inch)0.055"
Wiper Edge Length (mm)1.40mm
Cutting Edge Effective Length (Decimal Inch)0.106"
Cutting Edge Effective Length (mm)2.70mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count8
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterOF..05
Insert Size And ShapeOFMT0504
Insert HandRight Hand
MaterialCarbide
Product TypeOctomill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
41/79"
Inscribed Circle (Decimal Inch):
0.5190"
Inscribed Circle (mm):
13.18mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
1
