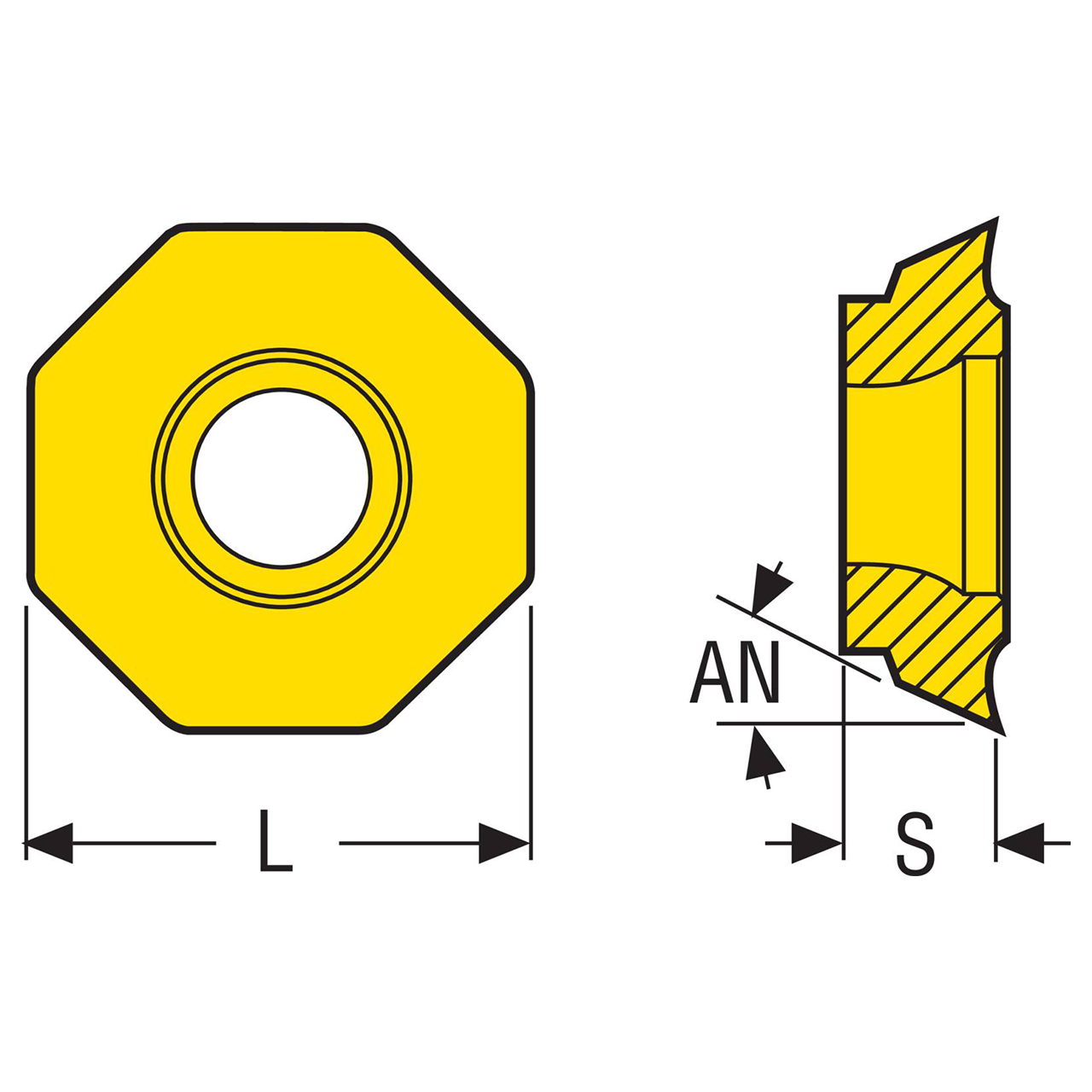

Seco Tools 00076807 | 0.519" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

$26.90 $22.08
(You save $4.82)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.5190"
Inscribed Circle (mm):
13.18mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
10
SKU:
23275187
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 00076807 | 0.519" Inscribed Circle Diameter x 0.020" Radius x 0.187" Thickness 8 Cutting Edge Carbide Octomill Insert

Product Specifications
Manufacturer Part Number00076807
Inscribed Circle Diameter (Decimal Inch)0.519"
Inscribed Circle Diameter (mm)13.18mm
Wiper Edge Length (Decimal Inch)0.059"
Wiper Edge Length (mm)1.50mm
Cutting Edge Effective Length (Decimal Inch)0.102"
Cutting Edge Effective Length (mm)2.60mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count8
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME12
Pocket Seat Code of The CutterOF..05
Insert Size And ShapeOFMT0504
Insert Rake Angle (Degree)18 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeOctomill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
