Seco Tools 00084948 | 0.503" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

$20.80
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5030"
Inscribed Circle (mm):
12.77mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
1
SKU:
23275417
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 00084948 | 0.503" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

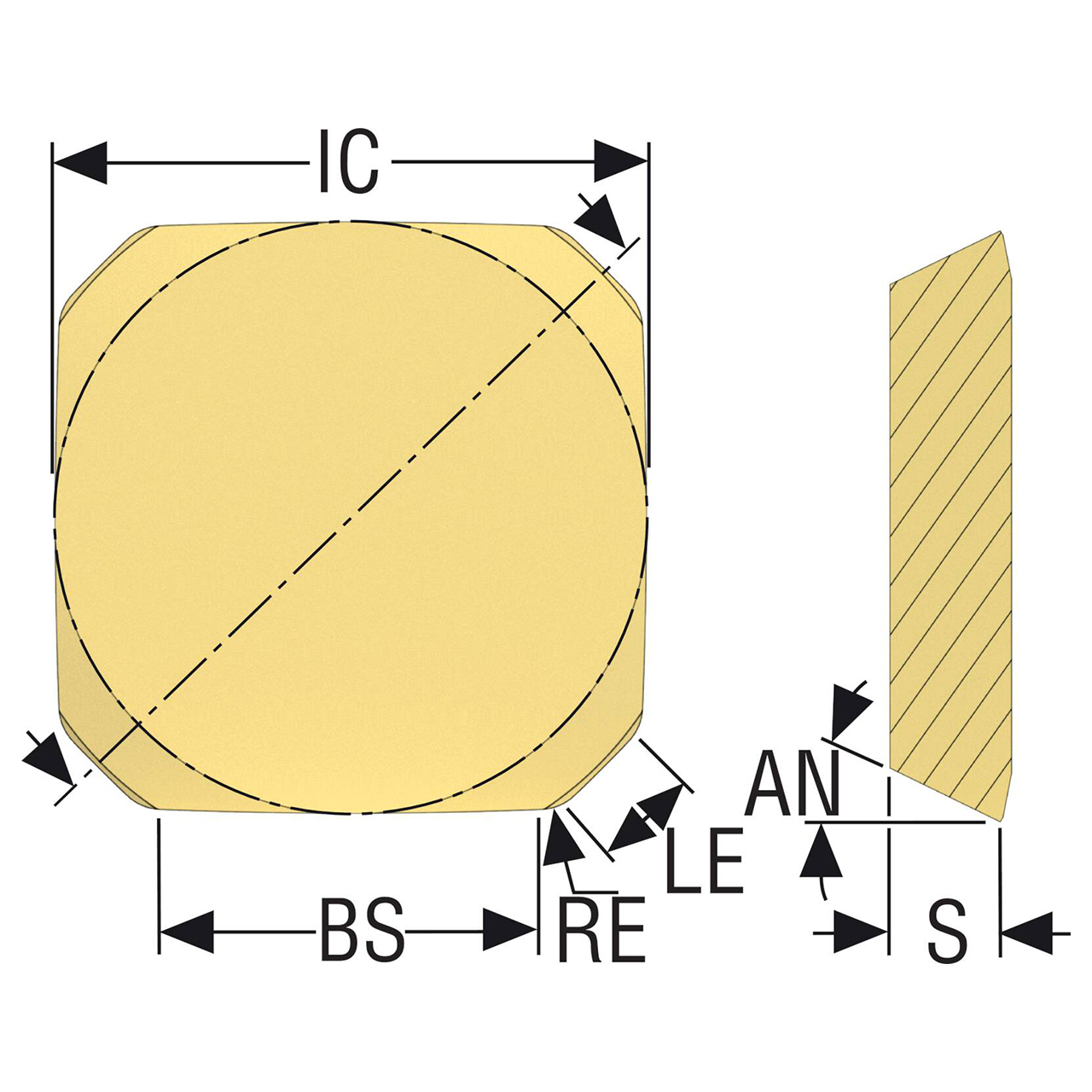

Product Specifications
Manufacturer Part Number00084948
Inscribed Circle Diameter (Decimal Inch)0.503"
Inscribed Circle Diameter (mm)12.77mm
Wiper Edge Length (Decimal Inch)0.315"
Wiper Edge Length (mm)8.00mm
Cutting Edge Effective Length (Decimal Inch)0.087"
Cutting Edge Effective Length (mm)2.20mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.125"
Insert Thickness (mm)3.18mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry TypeMD
Cutting Geometry Type TechnicalMD14
Pocket Seat Code of The CutterSE..1203
Insert Size And ShapeSEEX1203
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5030"
Inscribed Circle (mm):
12.77mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
1
