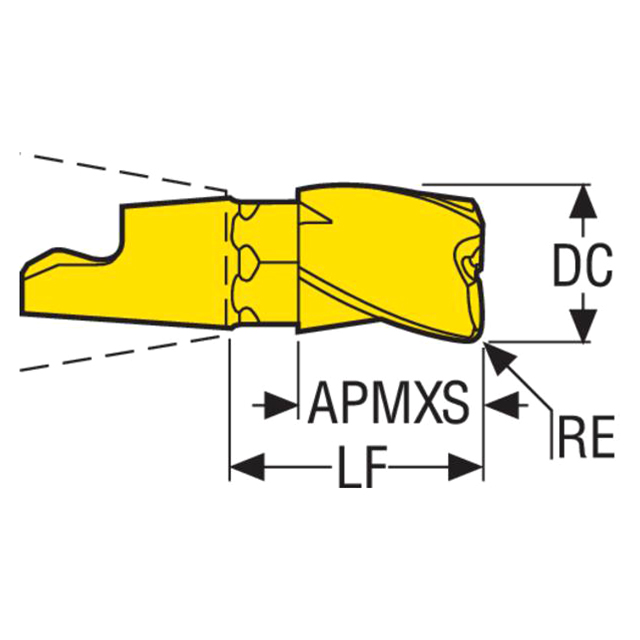

Product Specifications
| Manufacturer Part Number | 00094840 |
| Cutting Diameter (mm) | 10.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.20mm |
| Maximum Depth of Cut (mm) | 11.80mm |
| Cutting Edge Effective Length (mm) | 11.87mm |
| Functional Length (mm) | 15.72mm |
| Torque (Nm) | 12Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
25/64"
Cutting Diameter (Decimal Inch):
0.3900"
Cutting Diameter (mm):
10.00mm
interval quantity:
1
