| Manufacturer Part Number | 00095854 |

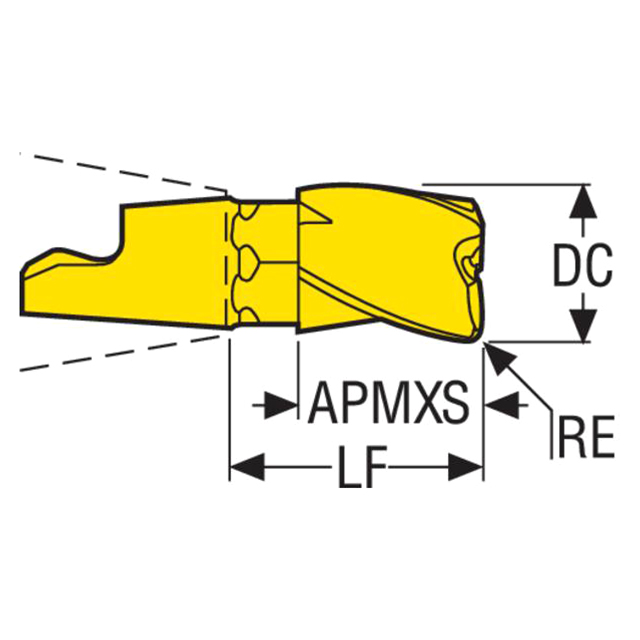

| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.740" |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.80mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.457" |
| Minimum Helical Interpolation Hole Diameter (mm) | 11.60mm |
| Maximum Depth of Cut (Decimal Inch) | 0.465" |
| Maximum Depth of Cut (mm) | 11.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.467" |
| Cutting Edge Effective Length (mm) | 11.87mm |
| Functional Length (Decimal Inch) | 0.619" |
| Functional Length (mm) | 15.72mm |
| Torque (Nm) | 12Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |
| Product Type | Slotting Milling Tip Insert |
