Seco Tools 02522043 | 0.503" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

$23.86
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5030"
Inscribed Circle (mm):
12.77mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
1
SKU:
23277563
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 02522043 | 0.503" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

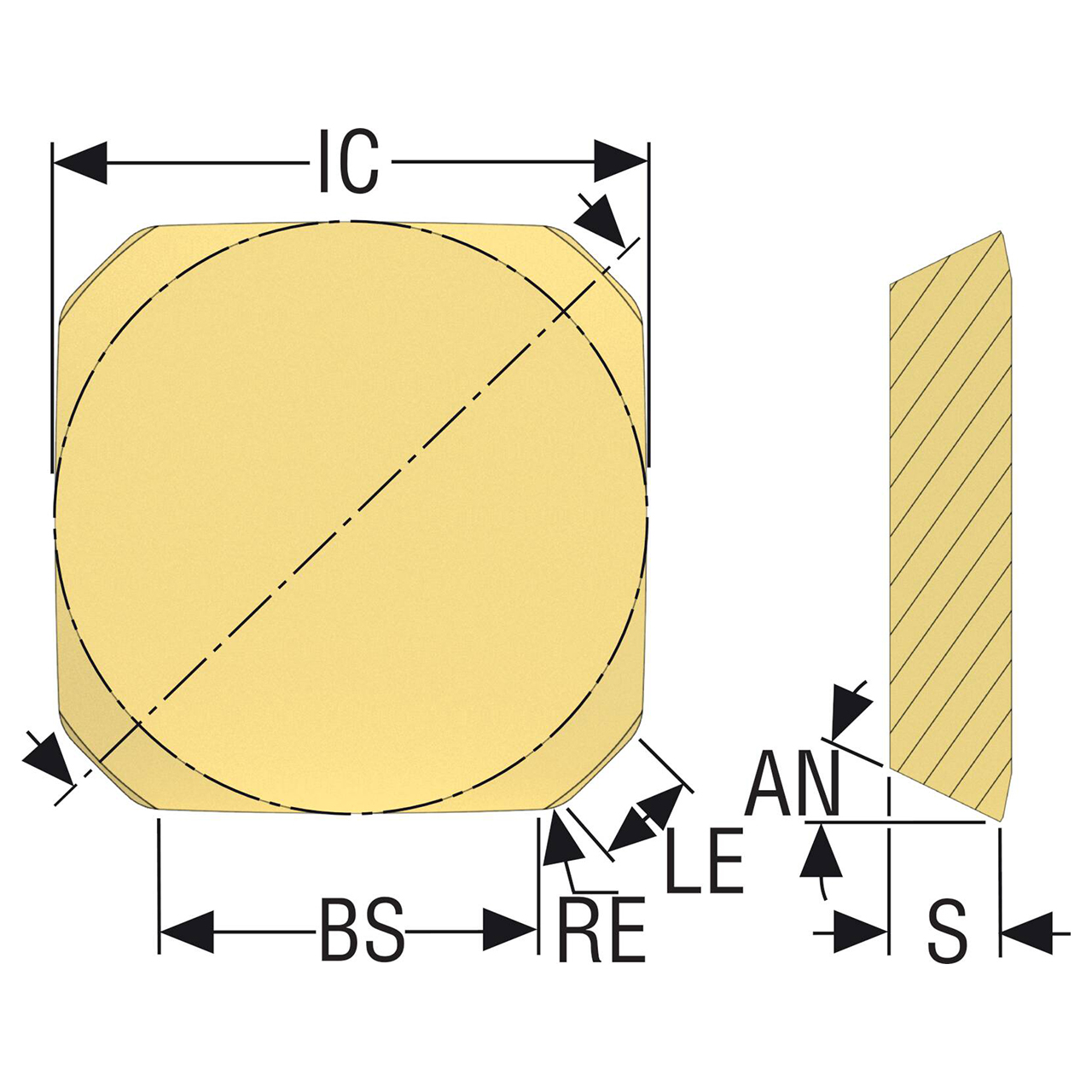

Product Specifications
Manufacturer Part Number02522043
Inscribed Circle Diameter (Decimal Inch)0.503"
Inscribed Circle Diameter (mm)12.77mm
Wiper Edge Length (Decimal Inch)0.315"
Wiper Edge Length (mm)8.00mm
Cutting Edge Effective Length (Decimal Inch)0.087"
Cutting Edge Effective Length (mm)2.20mm
Functional Width (Decimal Inch)1.378"
Functional Width (mm)35.00mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.125"
Insert Thickness (mm)3.18mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry TypeMD
Cutting Geometry Type TechnicalMD14
Pocket Seat Code of The CutterSE..1203
Insert Size And ShapeSEEX1203
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert
