Product Specifications
| Manufacturer Part Number | 02593434 |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.598" |
| Contact Surface Diameter Workpiece Side (mm) | 15.20mm |
| Functional Length (Decimal Inch) | 2.992" |
| Functional Length (mm) | 76.00mm |
| Protruding Length (Decimal Inch) | 4.095" |
| Protruding Length (mm) | 104.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Maximum Rotational Speed (rpm) | 47600 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical Densimet |

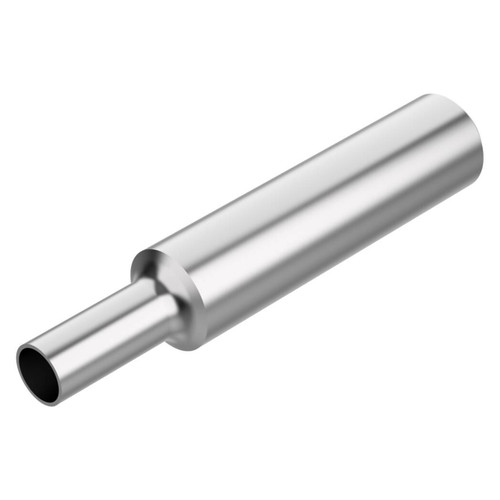

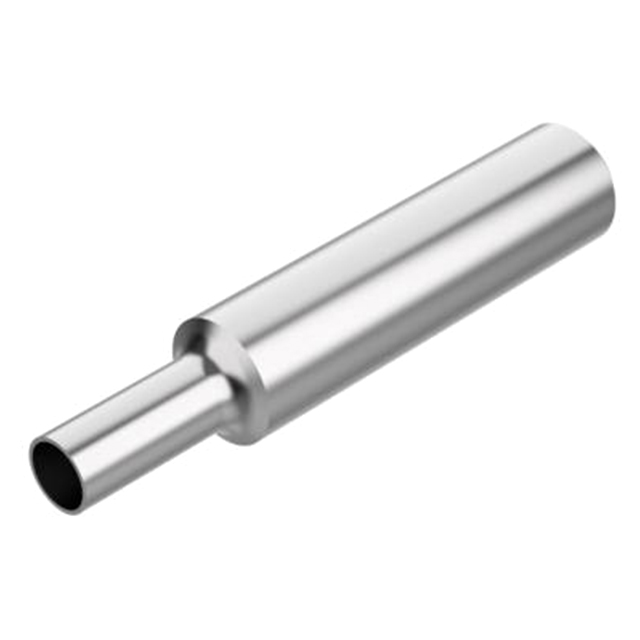

| Product Type | Replaceable Tip Milling Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical Densimet
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160.00mm
interval quantity:
1
