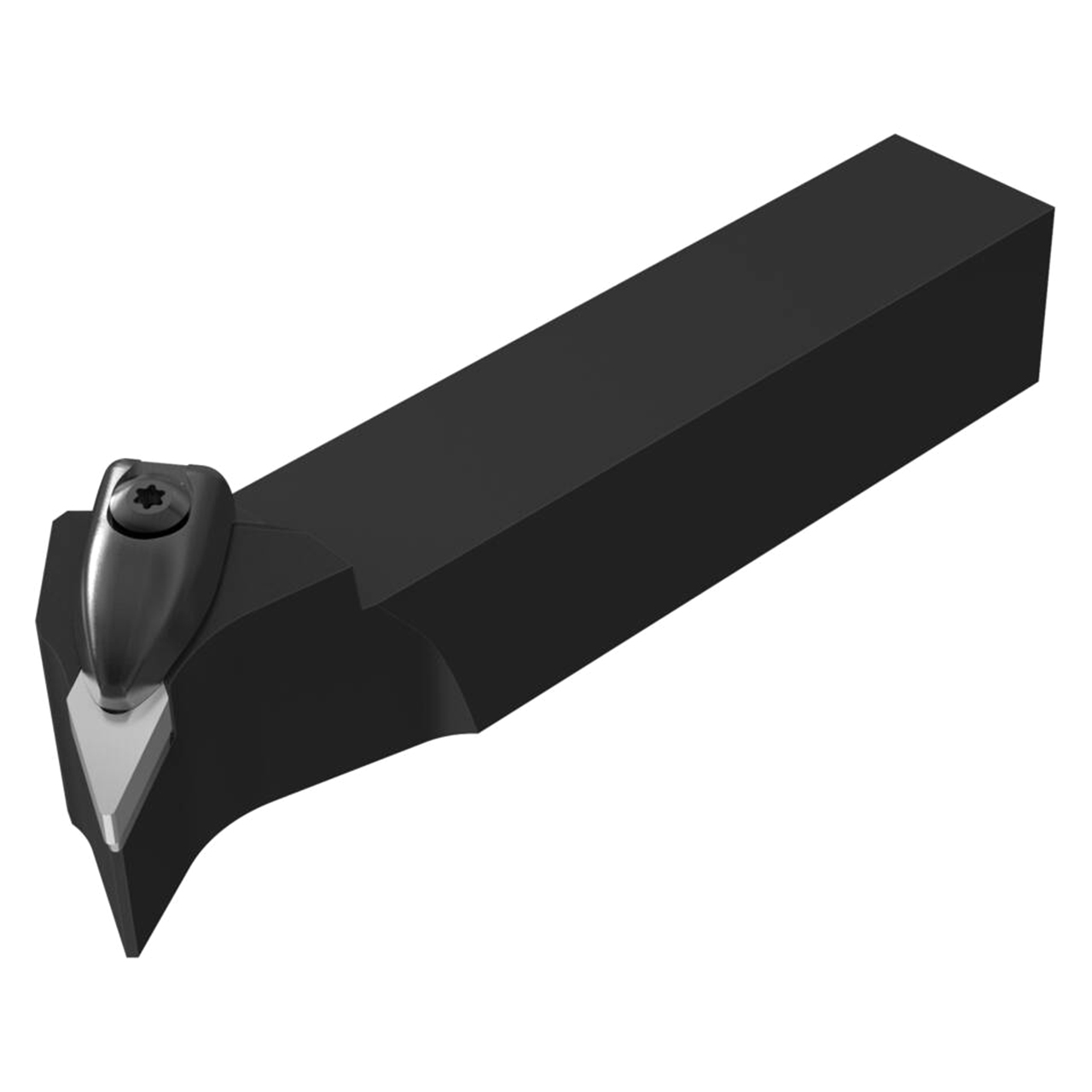

Product Specifications
| Manufacturer Part Number | 02880417 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.772" |
| Head Length (mm) | 45.00mm |
| Shank Width (Decimal Inch) | 0.996" |
| Shank Width (mm) | 25.30mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.996" |
| Height of Tool Holder Shank (mm) | 25.30mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 117.5 Degree |
| Tool Cutting Edge Angle Code | P |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 117.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 117.5 Degree |
| Inclination Angle (Degree) | -12.5 Degree |
| Insert Shape Code | V |
| Shank Type | Square shank |
| Product Type | Indexable Turning Toolholder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Rake Angle:
-4 Degree
Shank Width (Inch):
1"
Shank Width (Decimal Inch):
0.9960"
Shank Width (mm):
25.30mm
interval quantity:
1
