Product Specifications
| Manufacturer Part Number | 02961517 |
| Cutting Diameter (mm) | 160.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 55.00mm |
| Functional Length (mm) | 20.00mm |
| Keyway Width (mm) | 10.00mm |
| Cutting Width (mm) | 20.00mm |
| Maximum Depth of Cut (mm) | 20.00mm |
| Maximum Cutting Depth (mm) | 51.45mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 5600 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1206 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

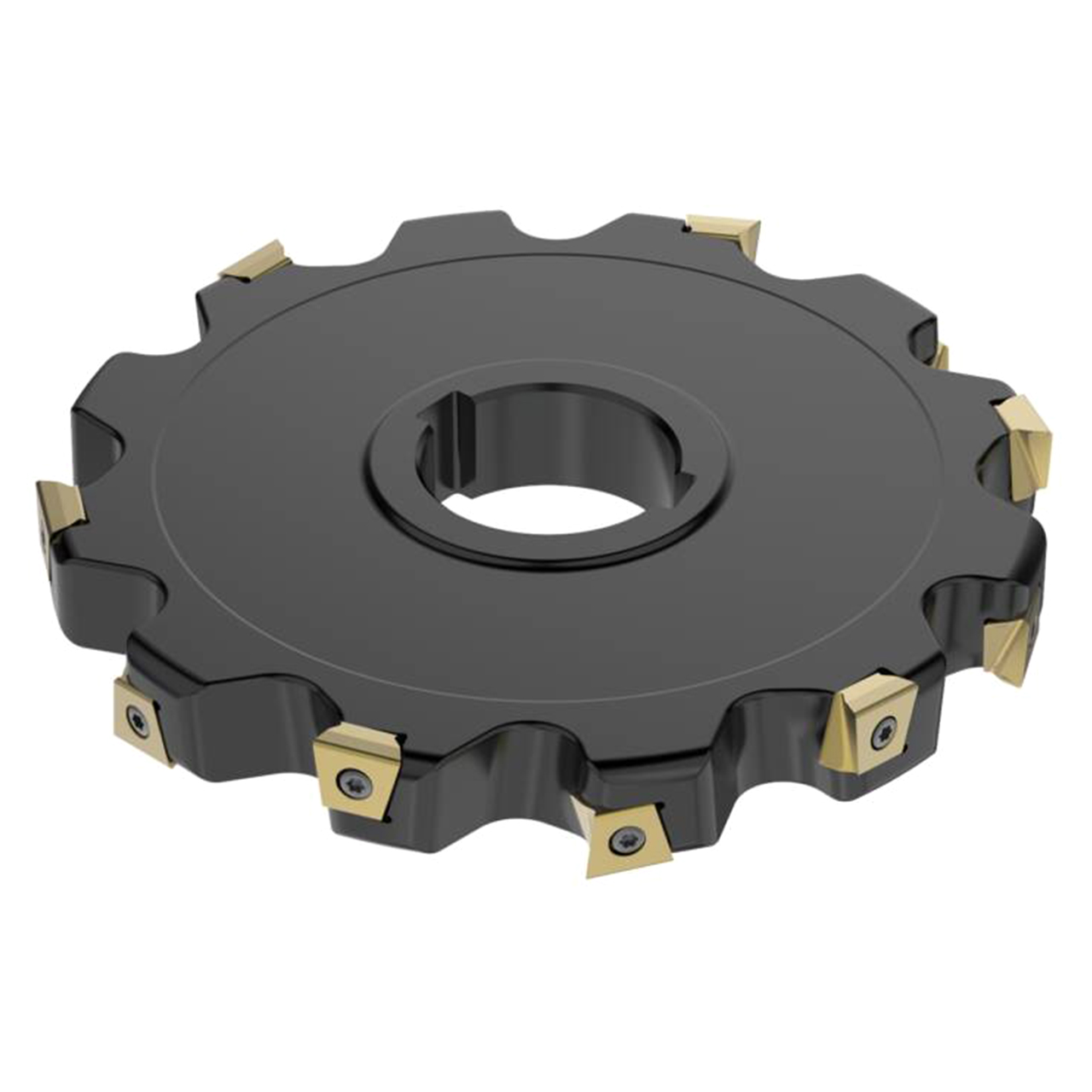

| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
20"
Cutting Width (Decimal Inch):
0.7874"
Cutting Width (mm):
20.00mm
Maximum Depth of Cut (Inch):
37/47"
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Cutter Diameter (Inch):
160"
Cutter Diameter (Decimal Inch):
6.2992"
Cutter Diameter (mm):
160.00mm
interval quantity:
1
