| Manufacturer Part Number | 02993732 |
| Cutting Diameter (mm) | 160.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 55.00mm |
| Functional Length (mm) | 15.25mm |
| Keyway Width (mm) | 10.00mm |
| Cutting Width (mm) | 13.50mm |
| Minimum Cutting Width (mm) | 13.50mm |
| Maximum Depth of Cut (mm) | 17.00mm |
| Maximum Cutting Depth (mm) | 50.54mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 7200 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ0905 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

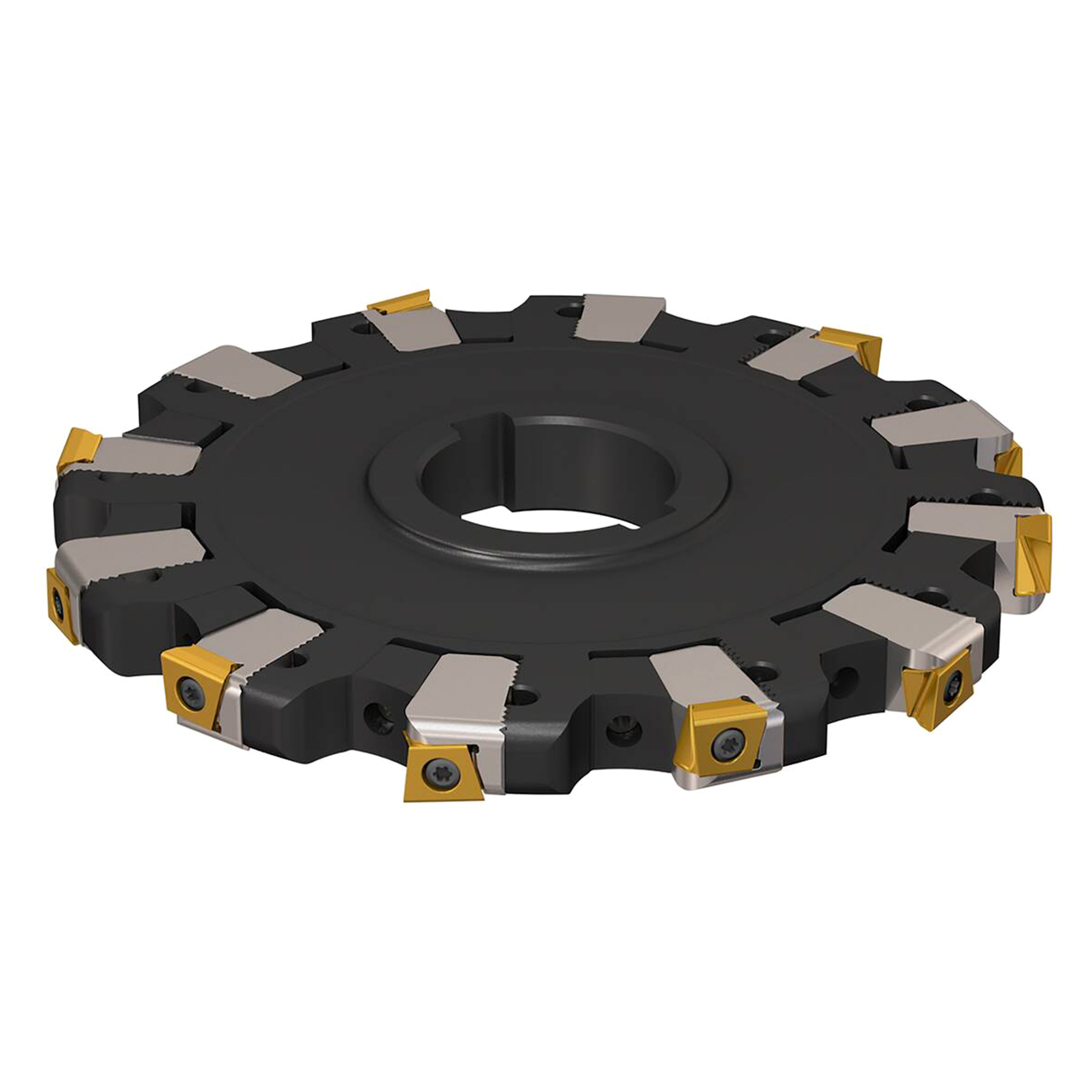

| Product Type | Indexable Slotting Cutter |
