Seco Tools 03091457 | 0.472" Inscribed Circle Diameter x 0.039" Radius x 0.189" Thickness 8 Cutting Edge Carbide Milling Insert

$20.87
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
42/89"
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
12.00mm
Thickness (Inch):
7/37"
Thickness (Decimal Inch):
0.1890"
Thickness (mm):
4.80mm
interval quantity:
1
SKU:
23285649
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 03091457 | 0.472" Inscribed Circle Diameter x 0.039" Radius x 0.189" Thickness 8 Cutting Edge Carbide Milling Insert

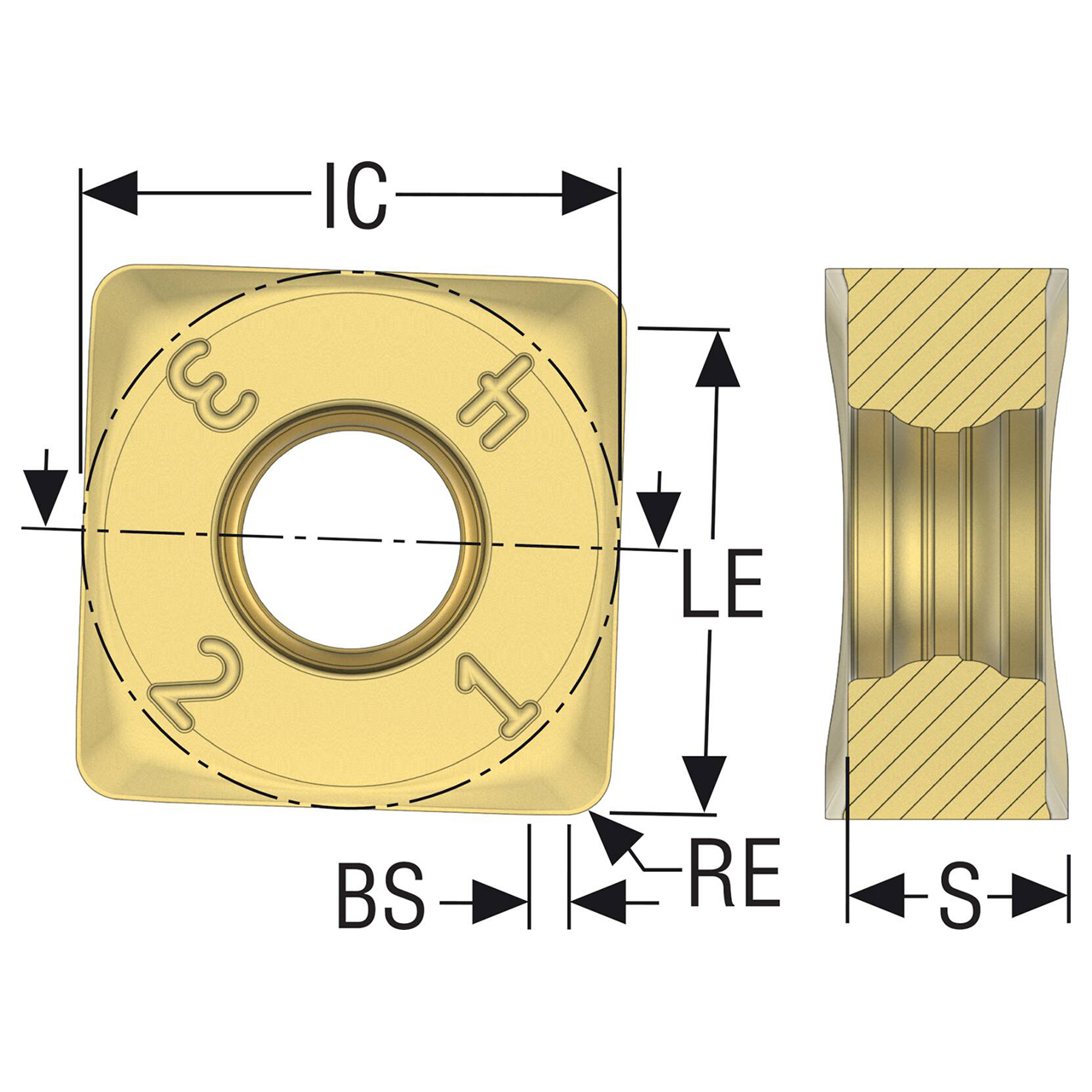

Product Specifications
Manufacturer Part Number03091457
Inscribed Circle Diameter (Decimal Inch)0.472"
Inscribed Circle Diameter (mm)12.00mm
Wiper Edge Length (Decimal Inch)0.039"
Wiper Edge Length (mm)1.00mm
Cutting Edge Effective Length (Decimal Inch)0.390"
Cutting Edge Effective Length (mm)9.90mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.189"
Insert Thickness (mm)4.80mm
Cutting Edge Count8
Cutting Geometry Type TechnicalM10
Pocket Seat Code of The CutterSN.U1204
Insert Size And ShapeSNMU1204
Insert Rake Angle (Degree)20 Degree
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
42/89"
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
12.00mm
Thickness (Inch):
7/37"
Thickness (Decimal Inch):
0.1890"
Thickness (mm):
4.80mm
interval quantity:
1
