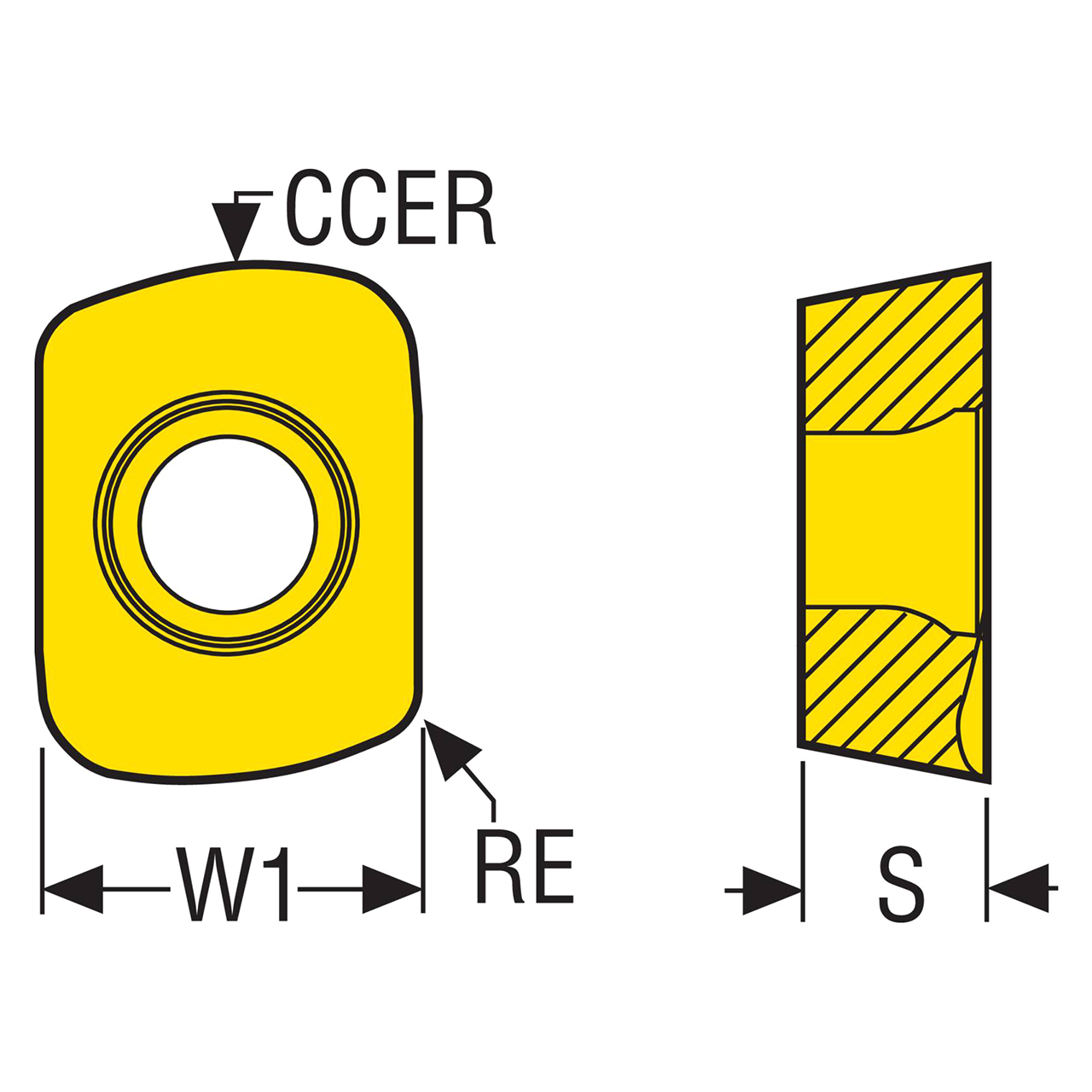

Seco Tools 03273548 | LPKW09T420TR-MD15 0.079" Corner Radius x 0.187" Thickness 2 Cutting Edge Carbide Milling Insert

$15.71
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
3/8"
Width (Decimal Inch):
0.3740"
Width (mm):
9.50mm
Length (Inch):
43/78"
Length (Decimal Inch):
0.5512"
Length (mm):
14.00mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
interval quantity:
1
SKU:
23287269
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 03273548 | LPKW09T420TR-MD15 0.079" Corner Radius x 0.187" Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number03273548
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Cutting Edge Effective Length (Decimal Inch)0.551"
Cutting Edge Effective Length (mm)14.00mm
Insert Length (Decimal Inch)0.551"
Insert Length (mm)14.00mm
Curved Cutting Edge Radius (Decimal Inch)0.384"
Curved Cutting Edge Radius (mm)9.75mm
Corner Radius (Decimal Inch)0.079"
Corner Radius (mm)2.00mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count2
Clearance Angle Major (Degree)11 Degree
Insert HandRight Hand
Cutting Geometry TypeMD
Cutting Geometry Type TechnicalMD15
Pocket Seat Code of The CutterLP..09T4
Insert Size And ShapeLPKW09T4
Insert Shape CodeL
MaterialCarbide
Product TypeMilling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Width (Inch):
3/8"
Width (Decimal Inch):
0.3740"
Width (mm):
9.50mm
Length (Inch):
43/78"
Length (Decimal Inch):
0.5512"
Length (mm):
14.00mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
interval quantity:
1
