Product Specifications

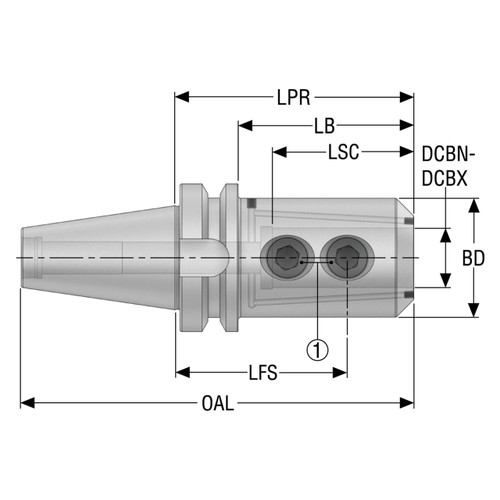

| Manufacturer Part Number | 03301738 |
| Body Diameter (Decimal Inch) | 2.000" |
| Body Diameter (mm) | 50.80mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 3.476" |
| Body Length (mm) | 88.30mm |
| Functional Length Secondary (Decimal Inch) | 3.380" |
| Functional Length Secondary (mm) | 85.85mm |
| Protruding Length (Decimal Inch) | 4.500" |
| Protruding Length (mm) | 114.30mm |
| Clamping Length (Decimal Inch) | 2.250" |
| Clamping Length (mm) | 57.15mm |
| Overall Length (Decimal Inch) | 5.760" |
| Overall Length (mm) | 146.30mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2"
Body Diameter (Decimal Inch):
2.0000"
Body Diameter (mm):
50.80mm
Overall Length (Inch):
5-19/25"
Overall Length (Decimal Inch):
5.7600"
Overall Length (mm):
146.30mm
interval quantity:
1
