| Manufacturer Part Number | 03301760 |
| Body Diameter (Decimal Inch) | 2.000" |
| Body Diameter (mm) | 50.80mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 2.937" |
| Body Length (mm) | 74.60mm |
| Functional Length Secondary (Decimal Inch) | 2.880" |
| Functional Length Secondary (mm) | 73.15mm |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 2.250" |
| Clamping Length (mm) | 57.15mm |
| Overall Length (Decimal Inch) | 6.575" |
| Overall Length (mm) | 167.00mm |
| Data Chip Provision | 1 |

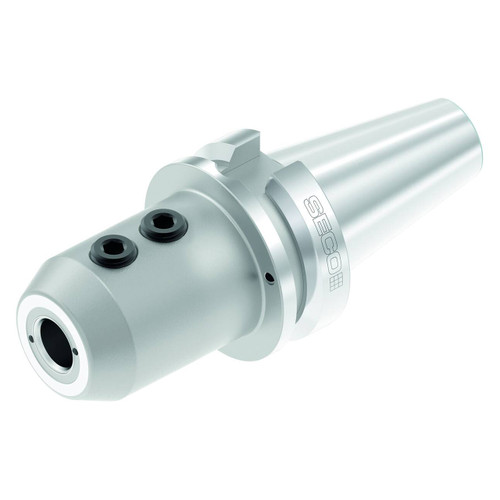

| Product Type | End Mill Holder |
